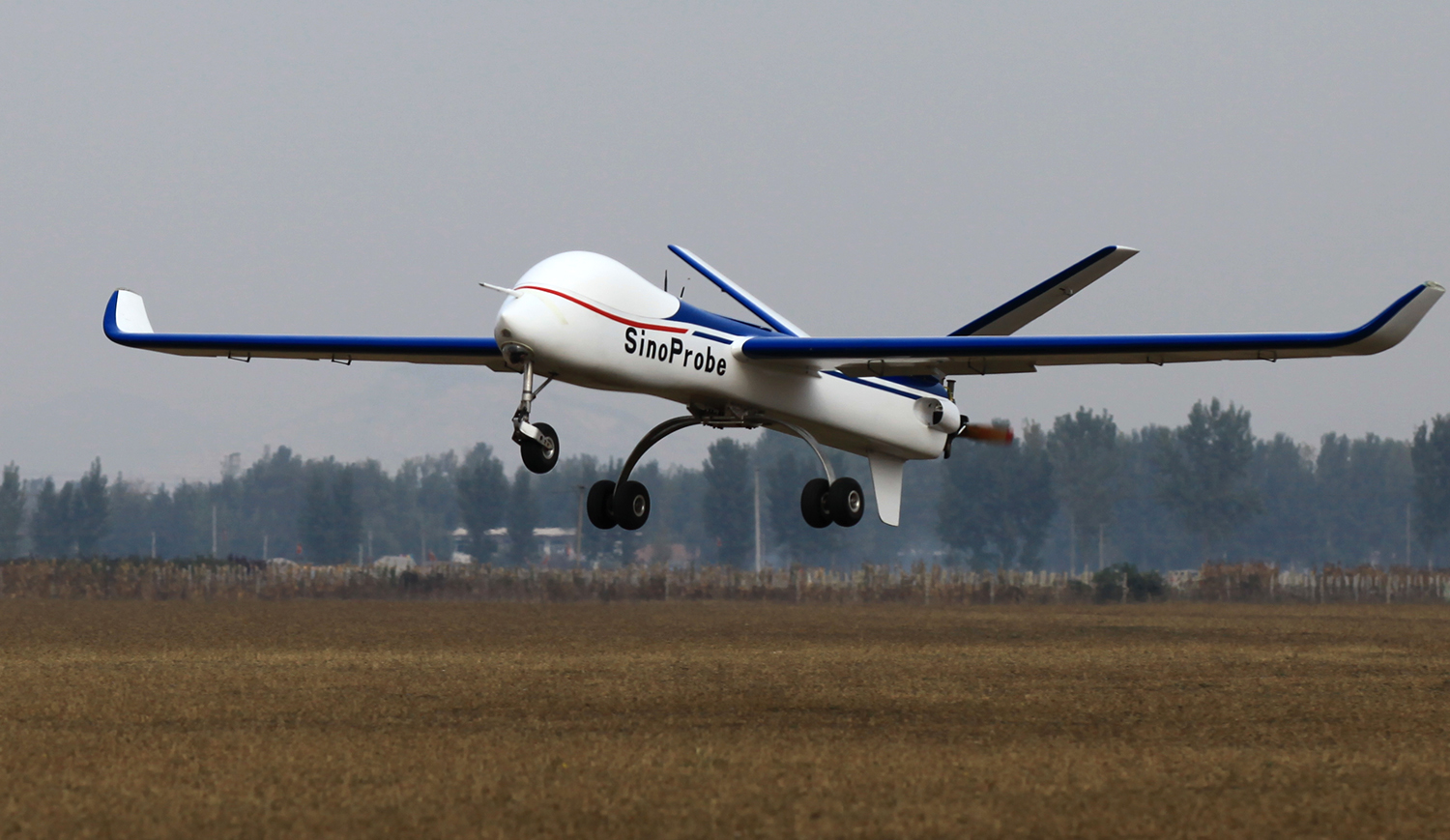

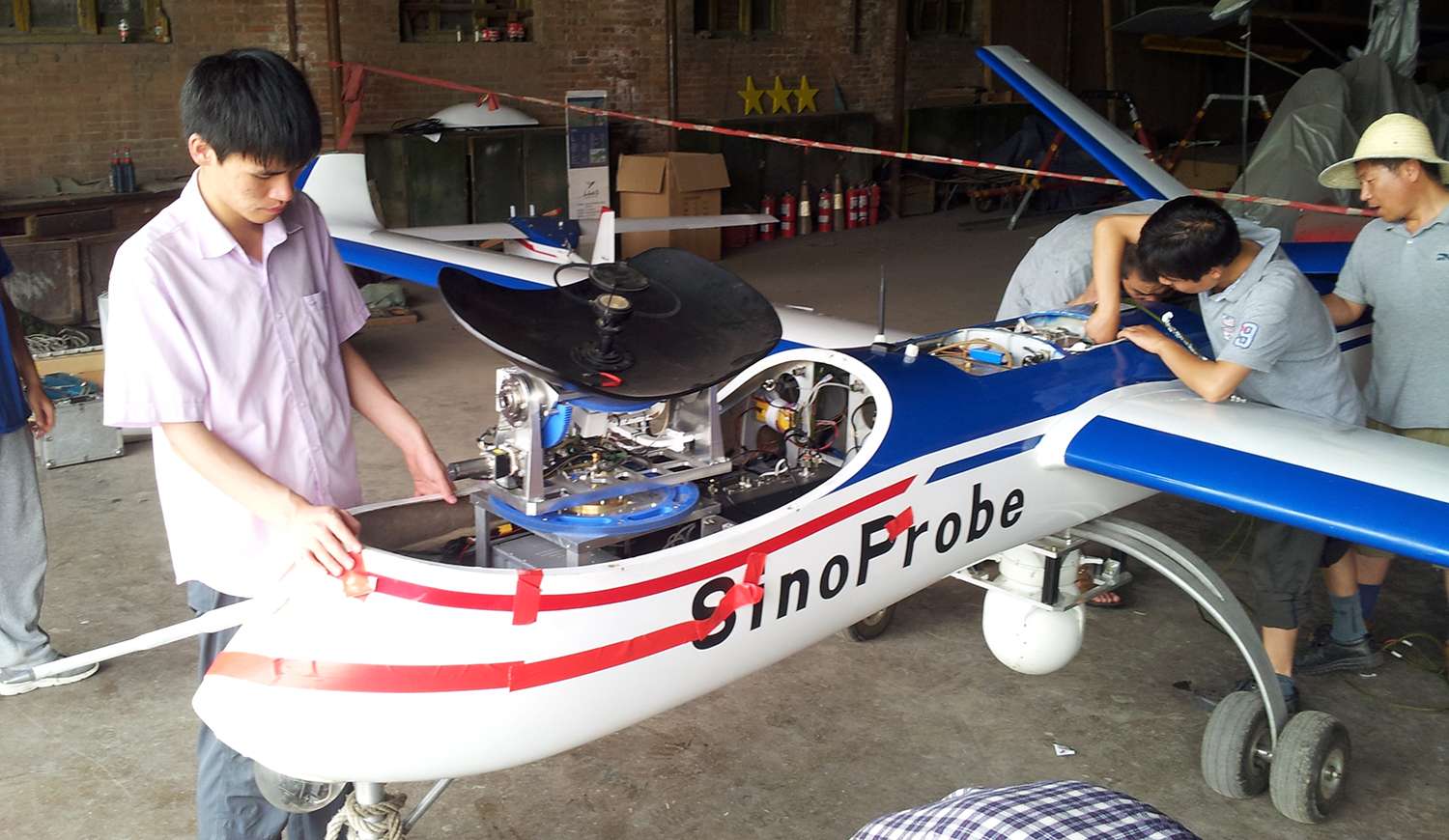

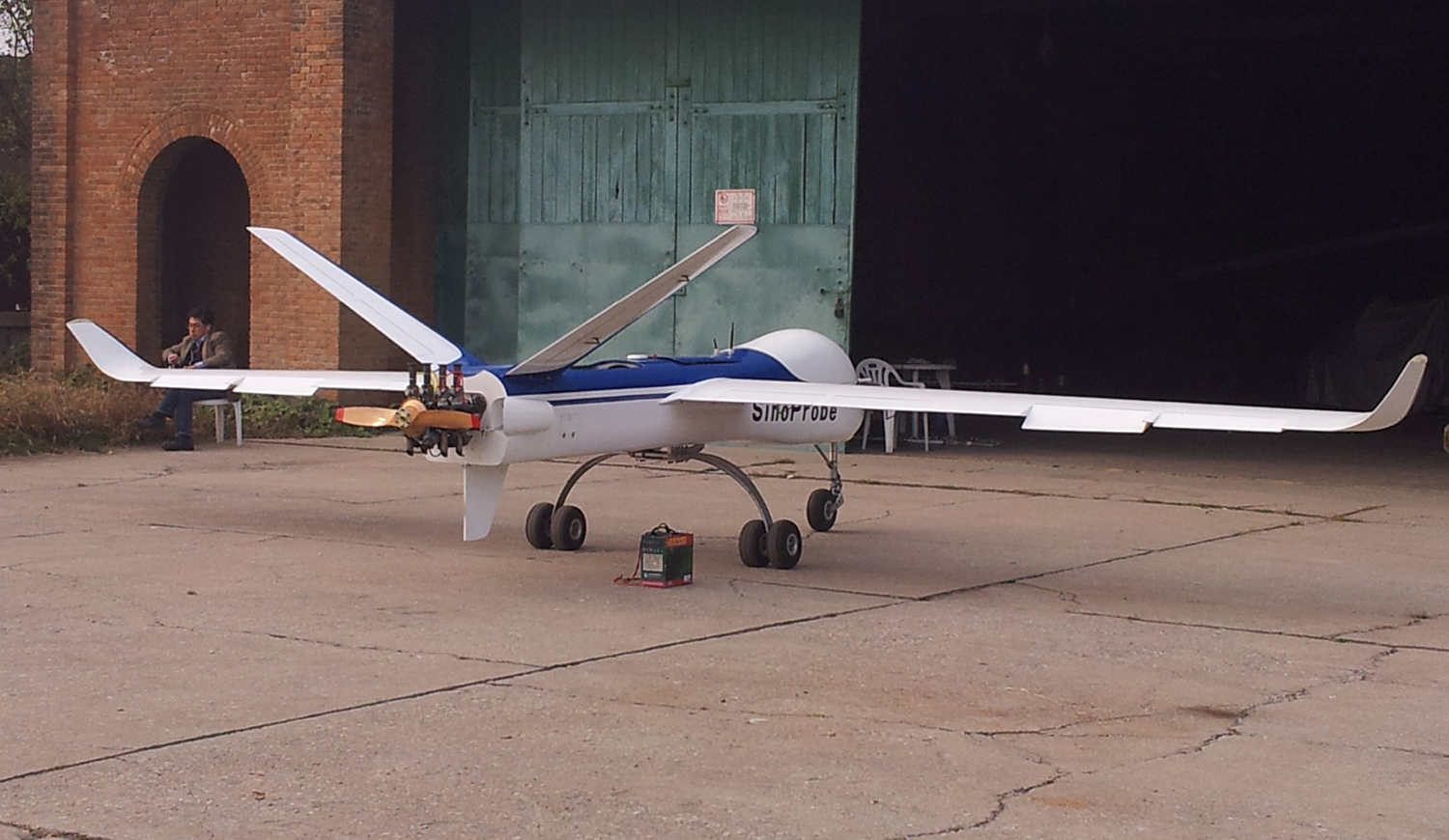

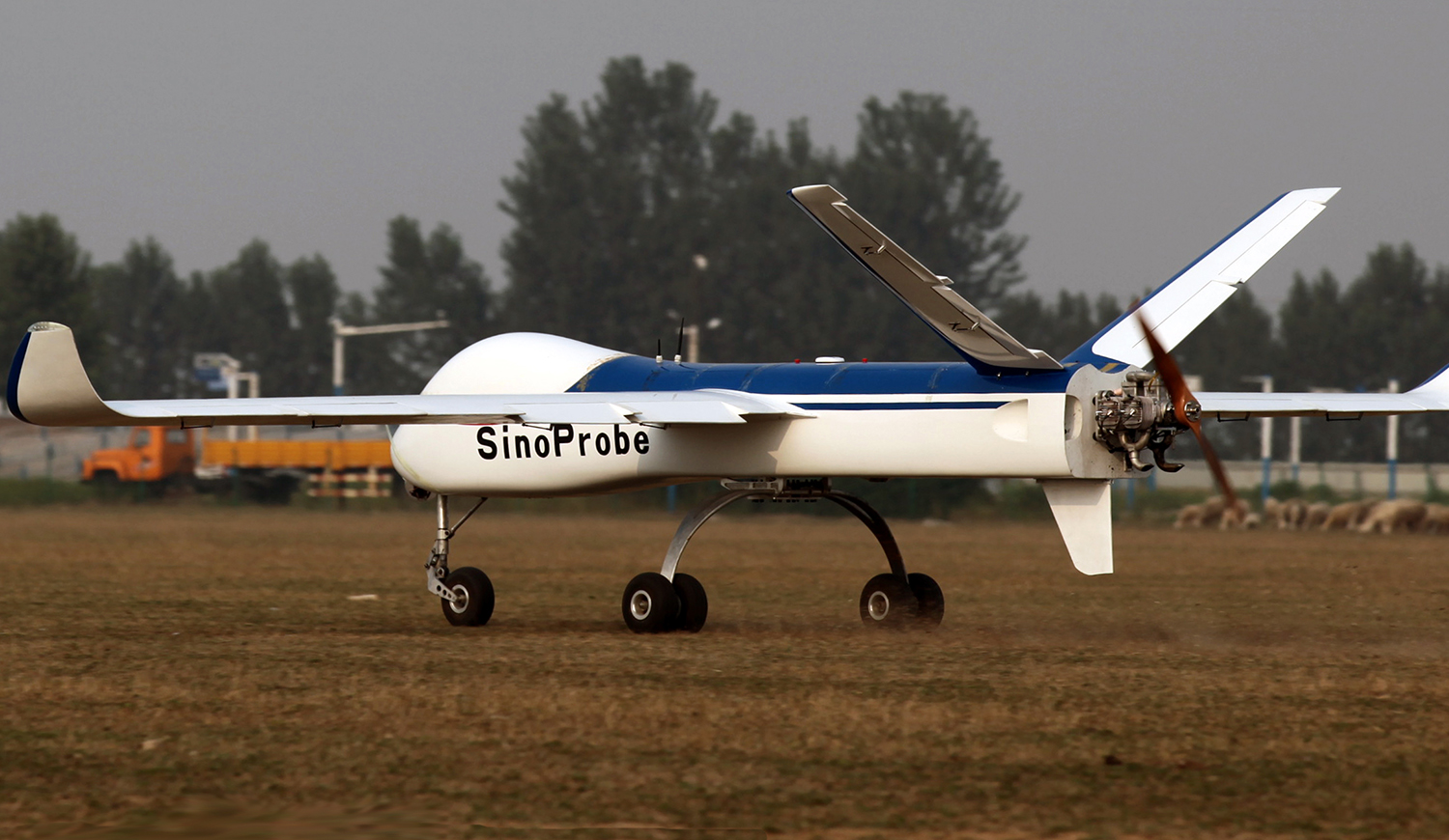

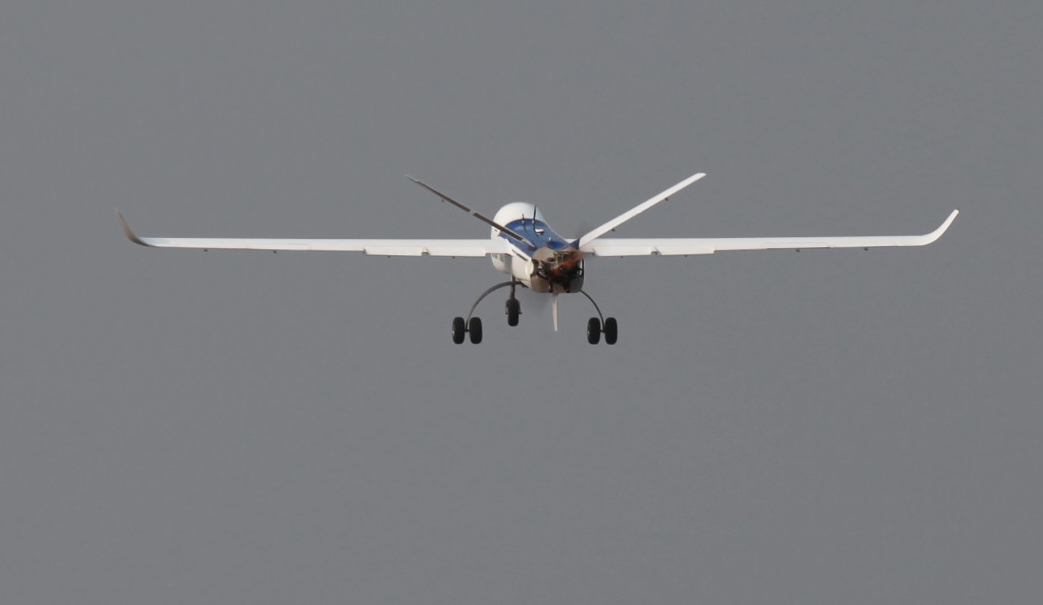

YZ8 Multi-Purpose UAVs




Wing Span

8.1 m

Length

5.0 m

Height

1.8 m

Empty Weight

115 kg

MTOW

220~320 kg*

Max Payload

50~100 kg*

Cruise Speed

120-150 km/h

Max Level Speed

190 km/h

Ceiling

6000 m

Endurance

> 20 Hour*

Fuel Tank Capacity

80~140 L

Engine

MD550

Max Power

37KW(50HP)

Generator

28 V / 1200 W

Starter

12 V / 300 W

Body Material

Composites

Take Off / Land Way

Run

* Based on engine type and amount of fuel

Flight Video

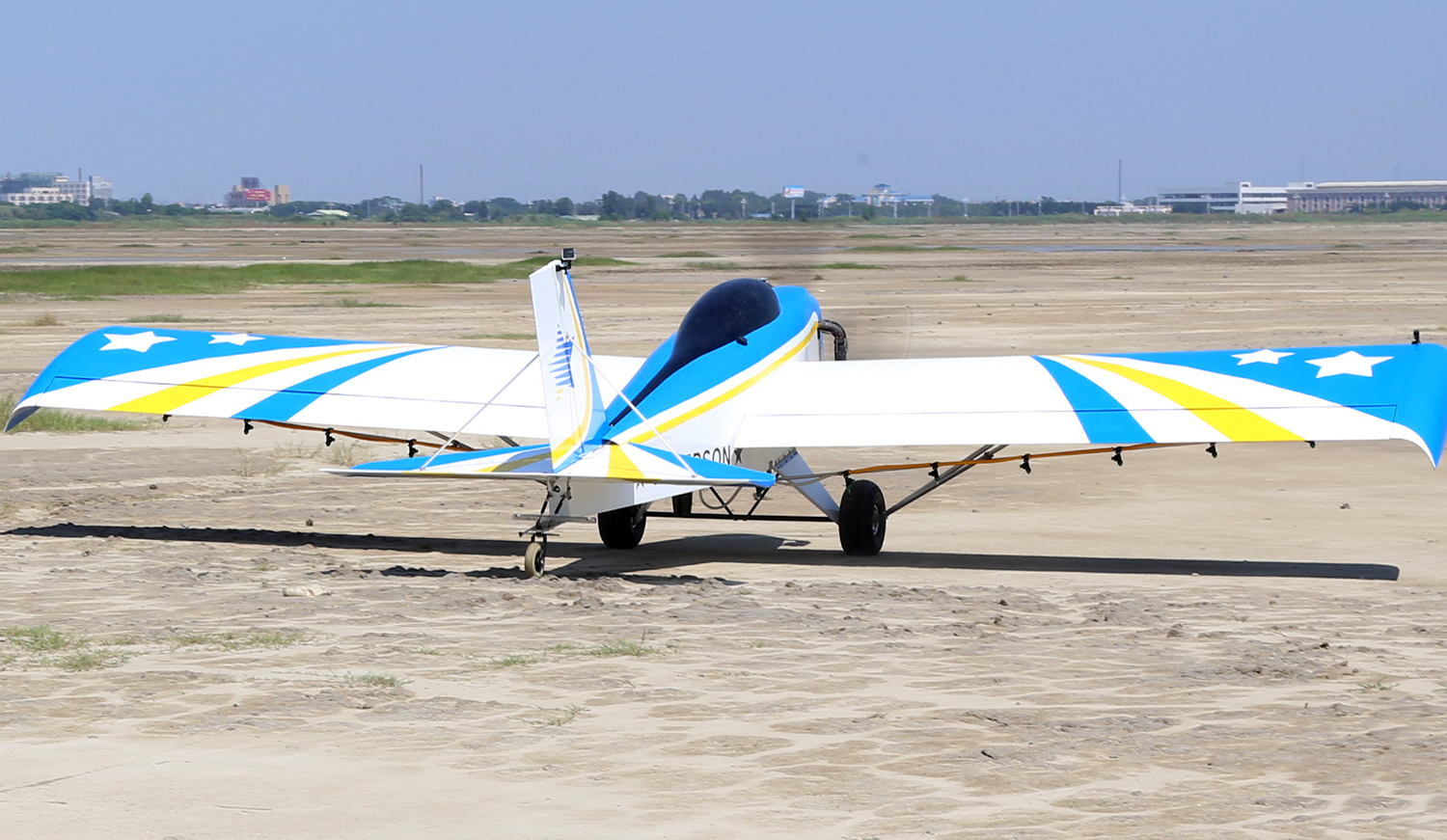

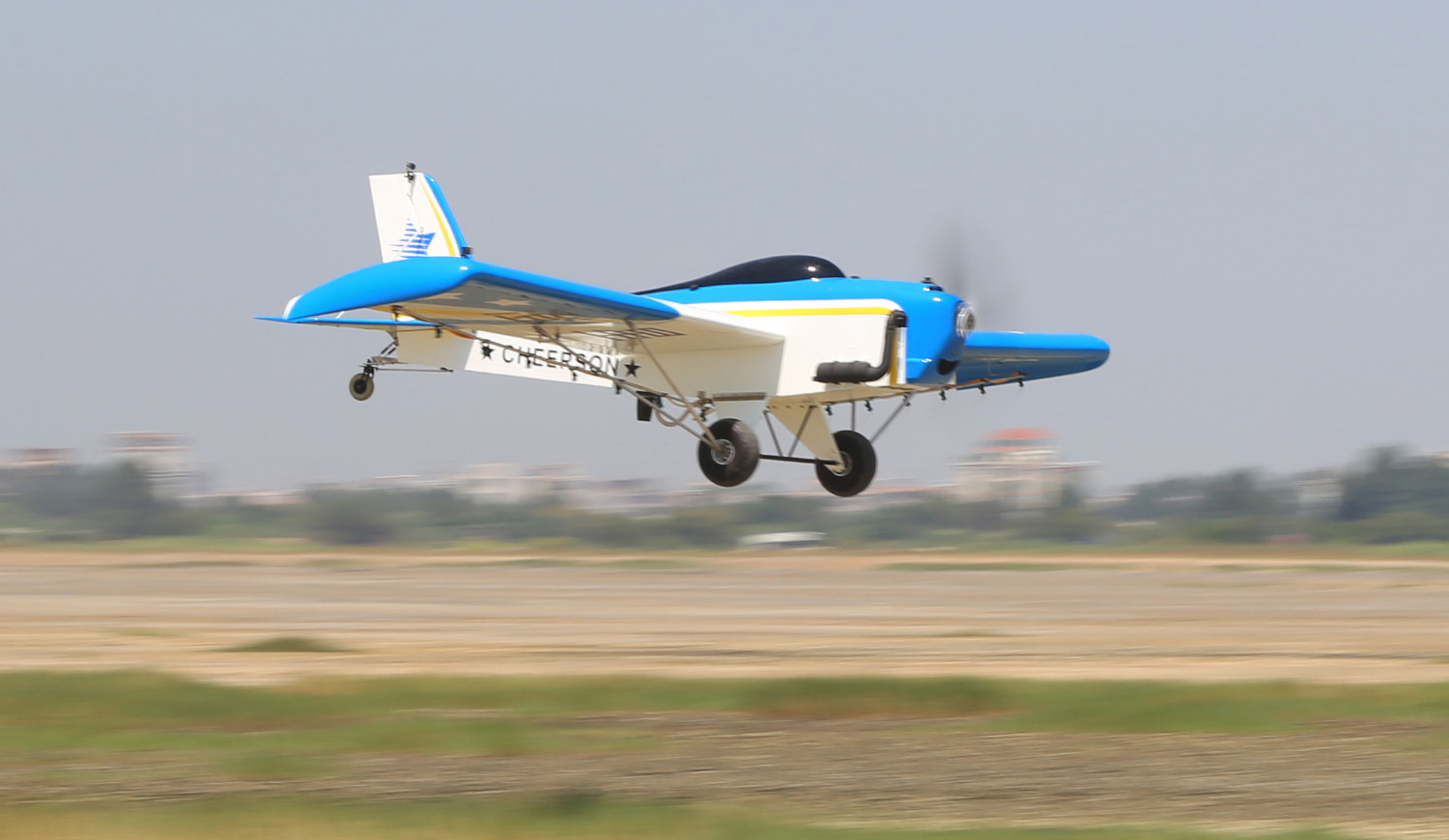

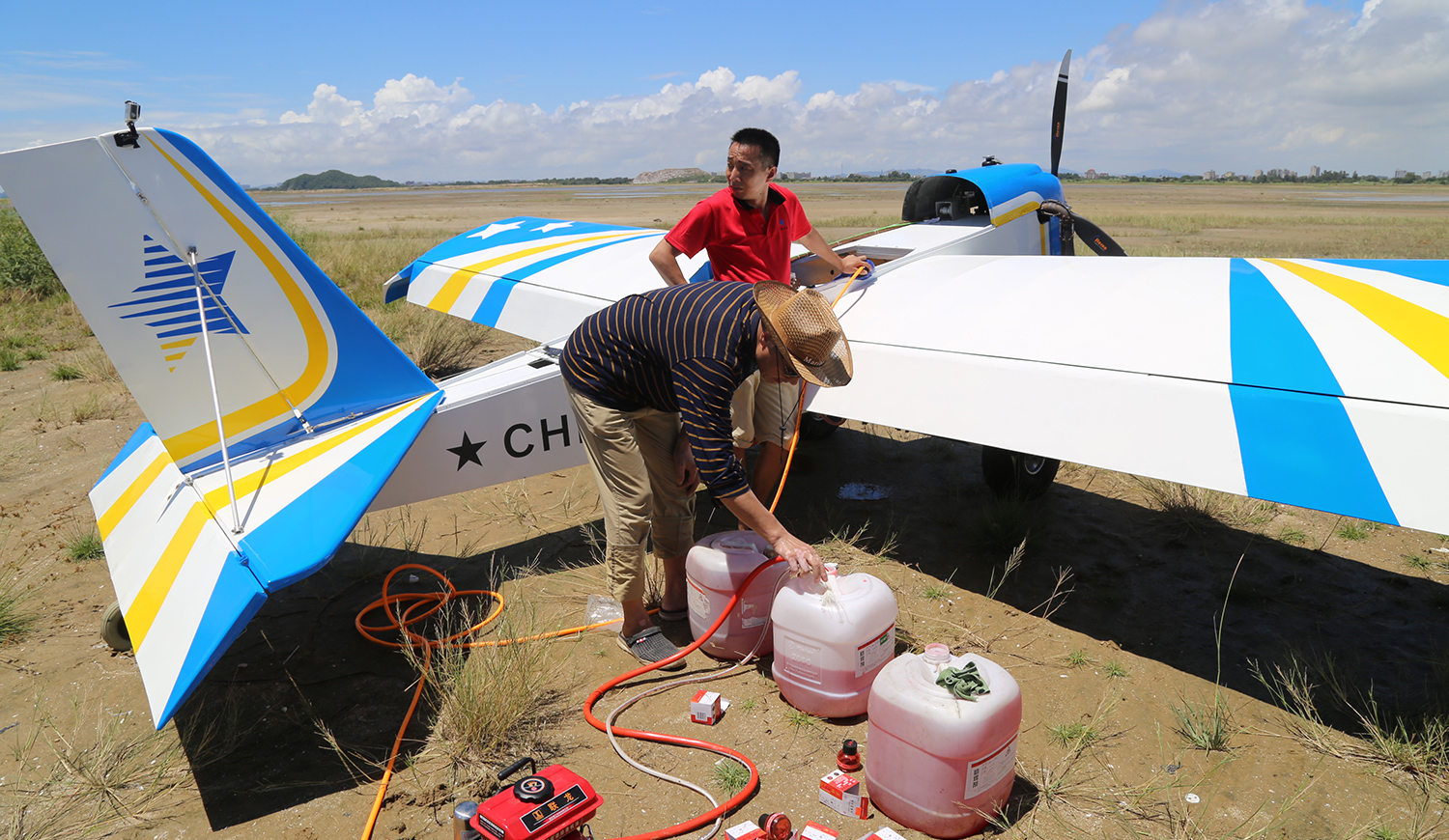

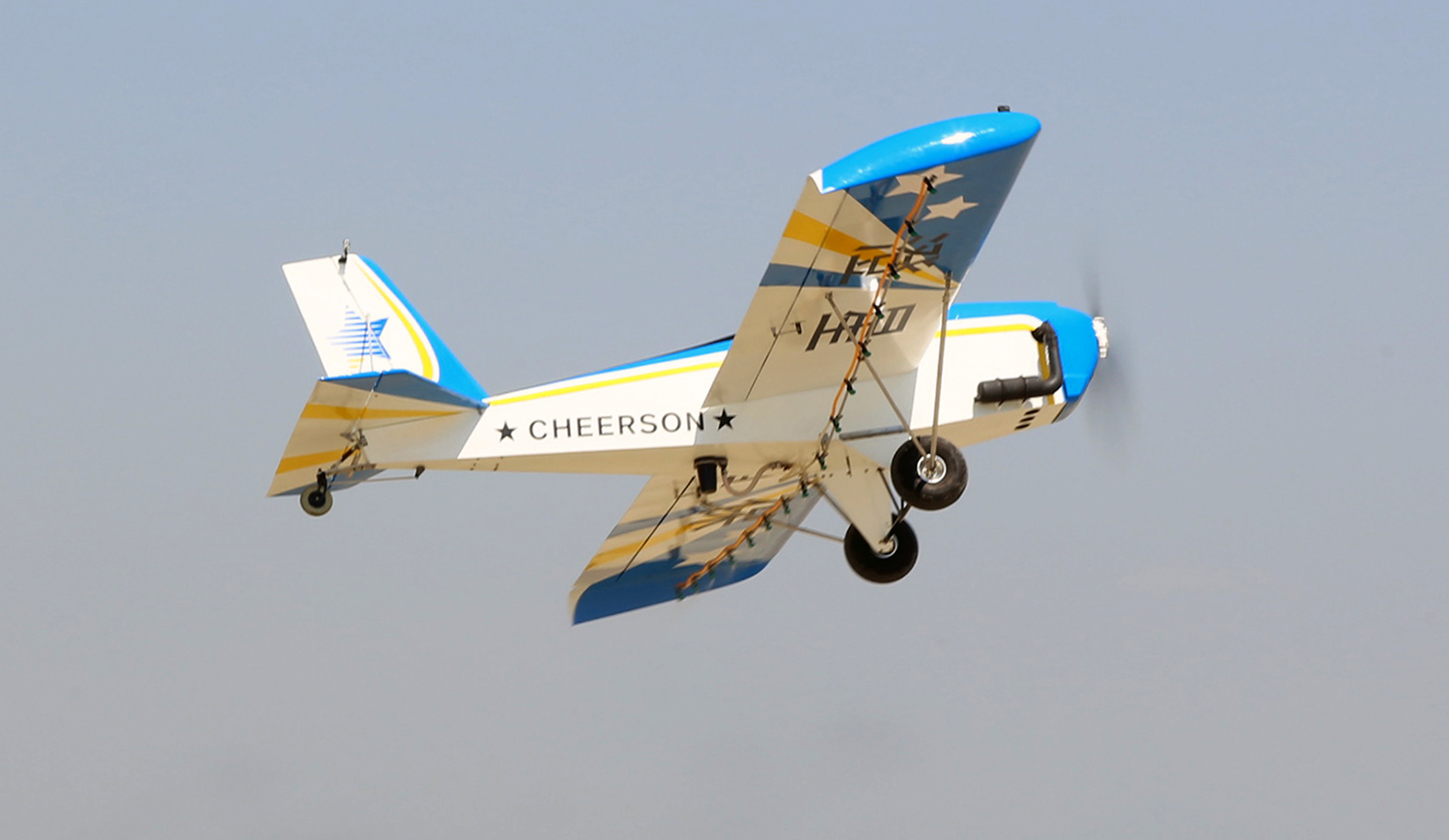

CHX10 Agricultural UAVs




Wing Span

8.32 m

Length

5.12 m

Height

2.2 m

Empty Weight

180 kg

MTOW

330 kg*

Max Payload

150 kg*

Cruise Speed

60-120 km/h

Max Level Speed

180 km/h

Stall Speed

45 km/h

Ceiling

3650 m

Working Altitude

3~10 m

Endurance

> 6 Hour*

Fuel Tank Capacity

30~90 L

Engine

ROTAX 582

Max Power

48KW(65HP)

Body Material

Composites

Take Off / Land Way

Run

* Based on engine type and amount of fuel

Flight Video

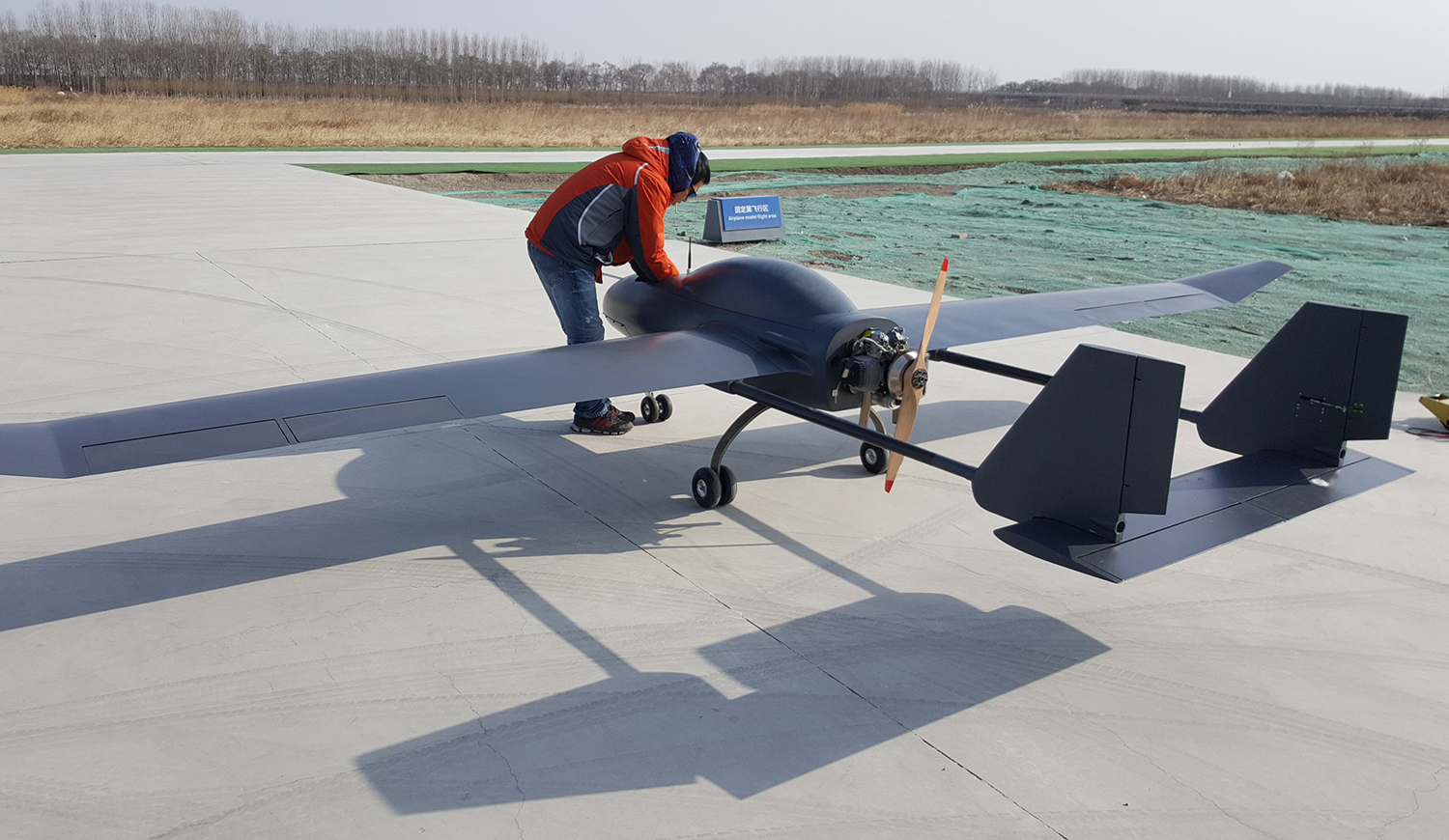

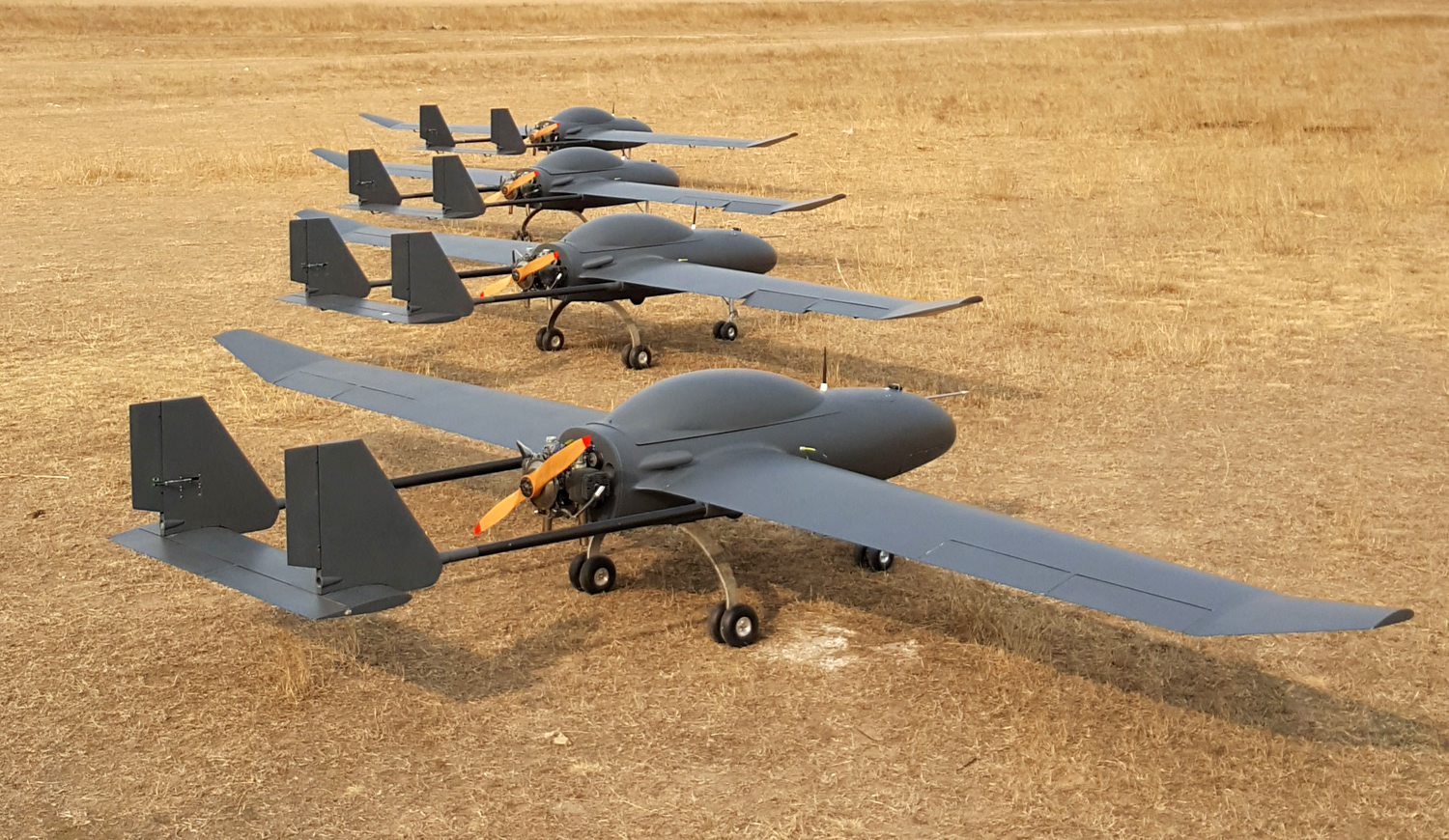

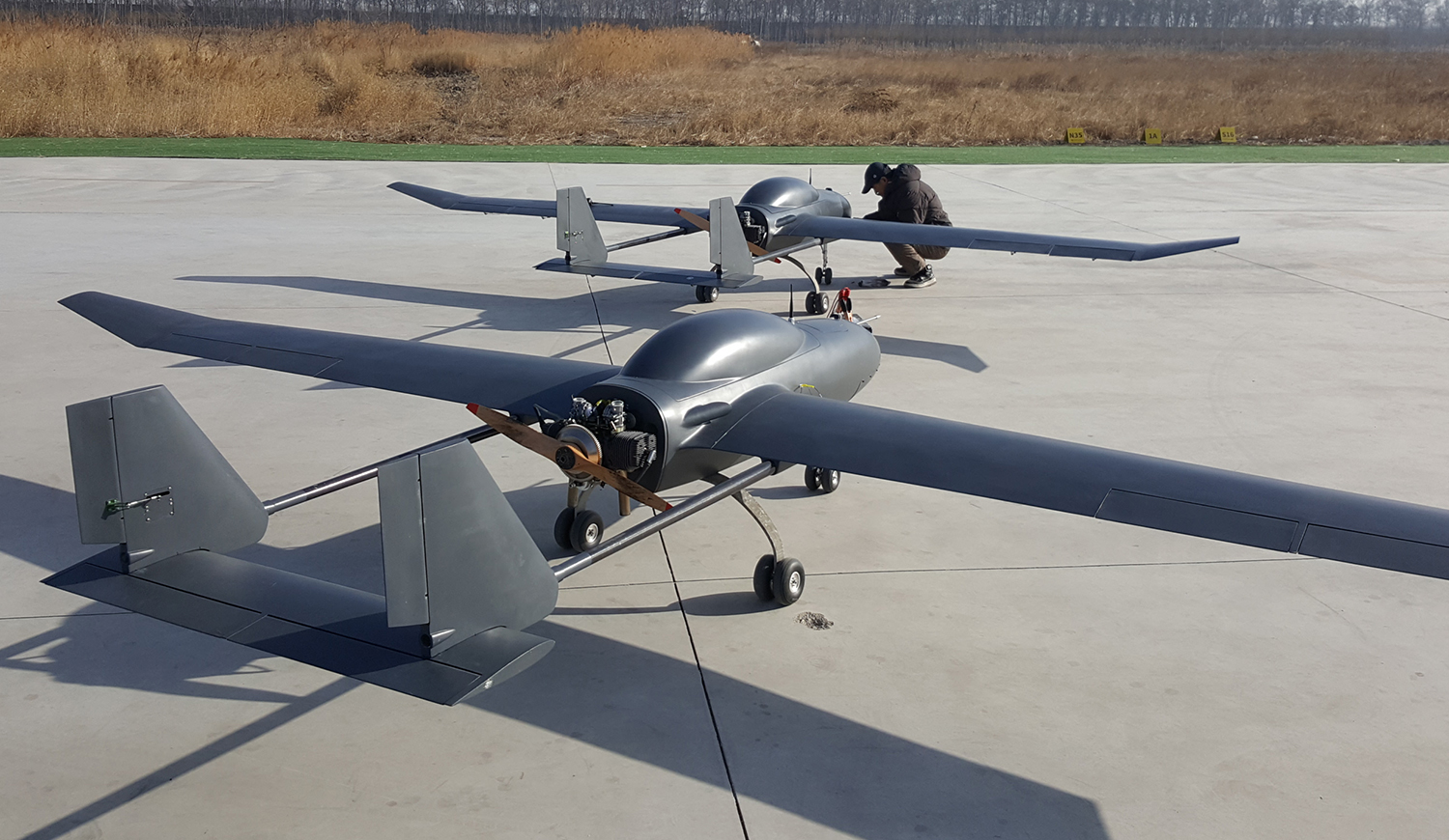

YZ6 Multi-Purpose UAVs




Wing Span

6.0 m

Length

3.1 m

Height

0.84 m

Empty Weight

80 kg

MTOW

130~145 kg*

Max Payload

20~35 kg*

Cruise Speed

120-160 km/h

Max Level Speed

190 km/h

Ceiling

6000 m

Endurance

> 5 Hour*

Fuel Tank Capacity

30 L

Engine

MD275

Max Power

18KW(25HP)

Generator

28 V / 1200 W

Starter

12 V / 300 W

Body Material

Composites

Take Off / Land Way

Run/Car take off

* Based on engine type and amount of fuel

Flight Video

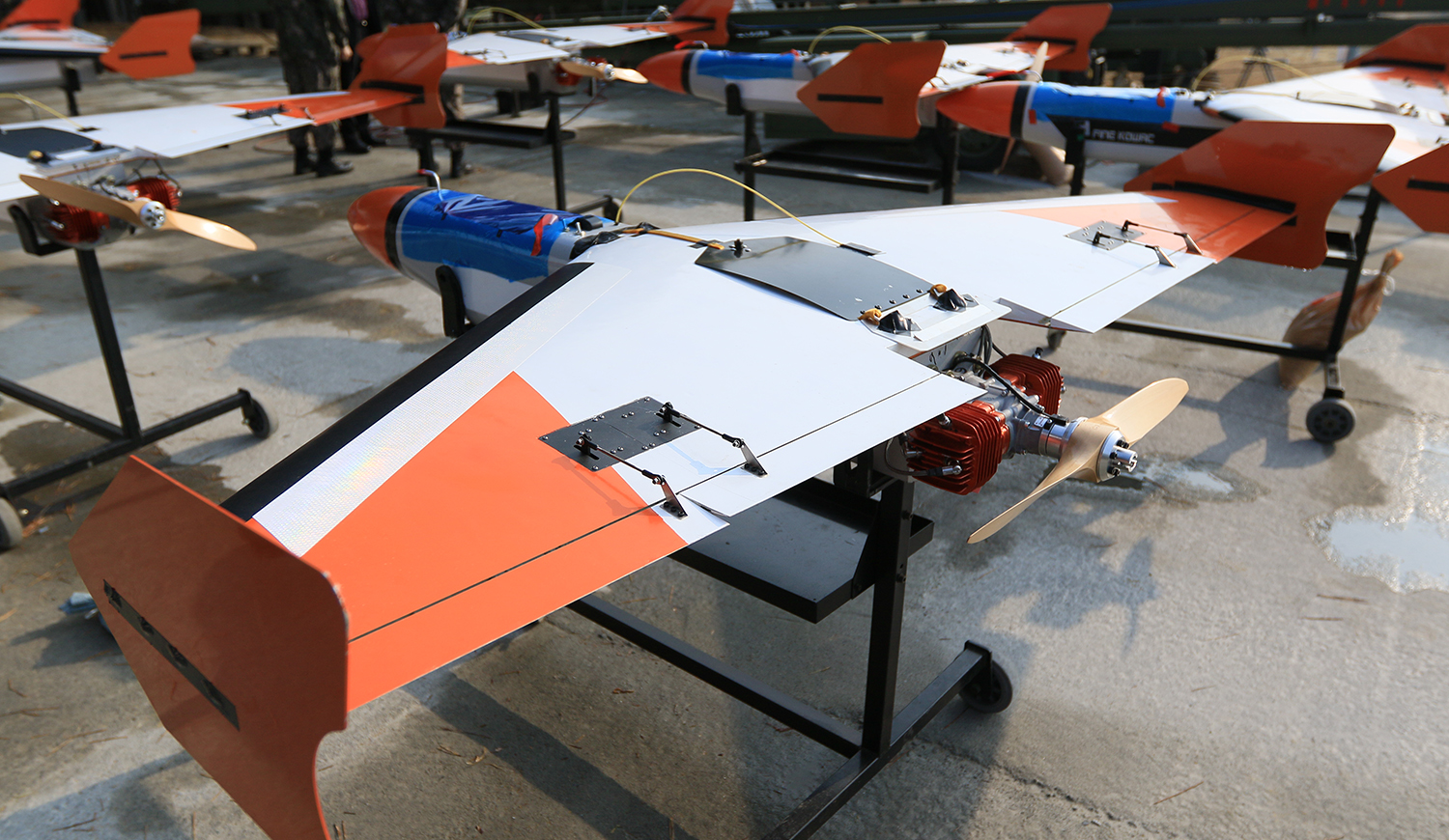

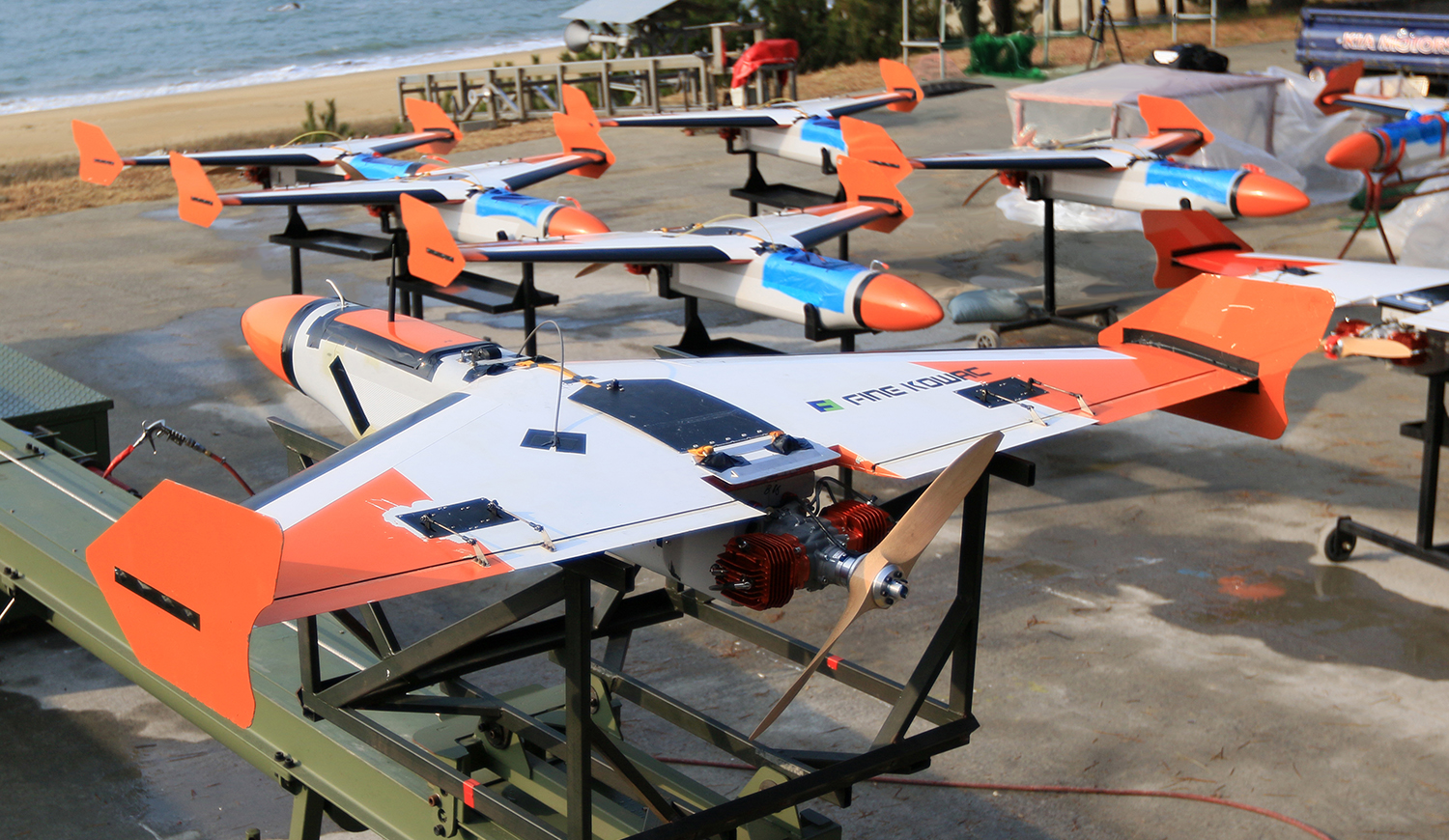

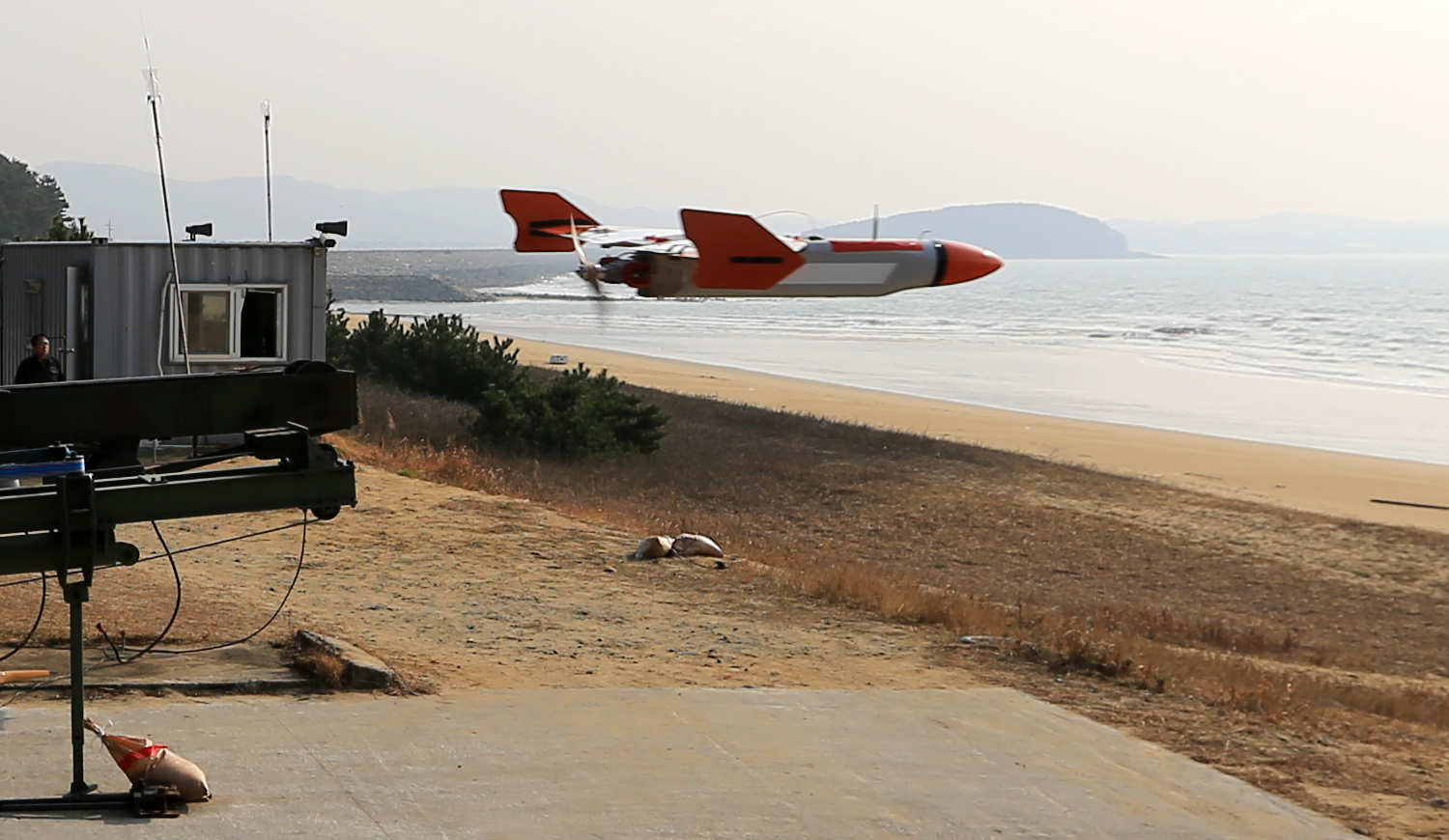

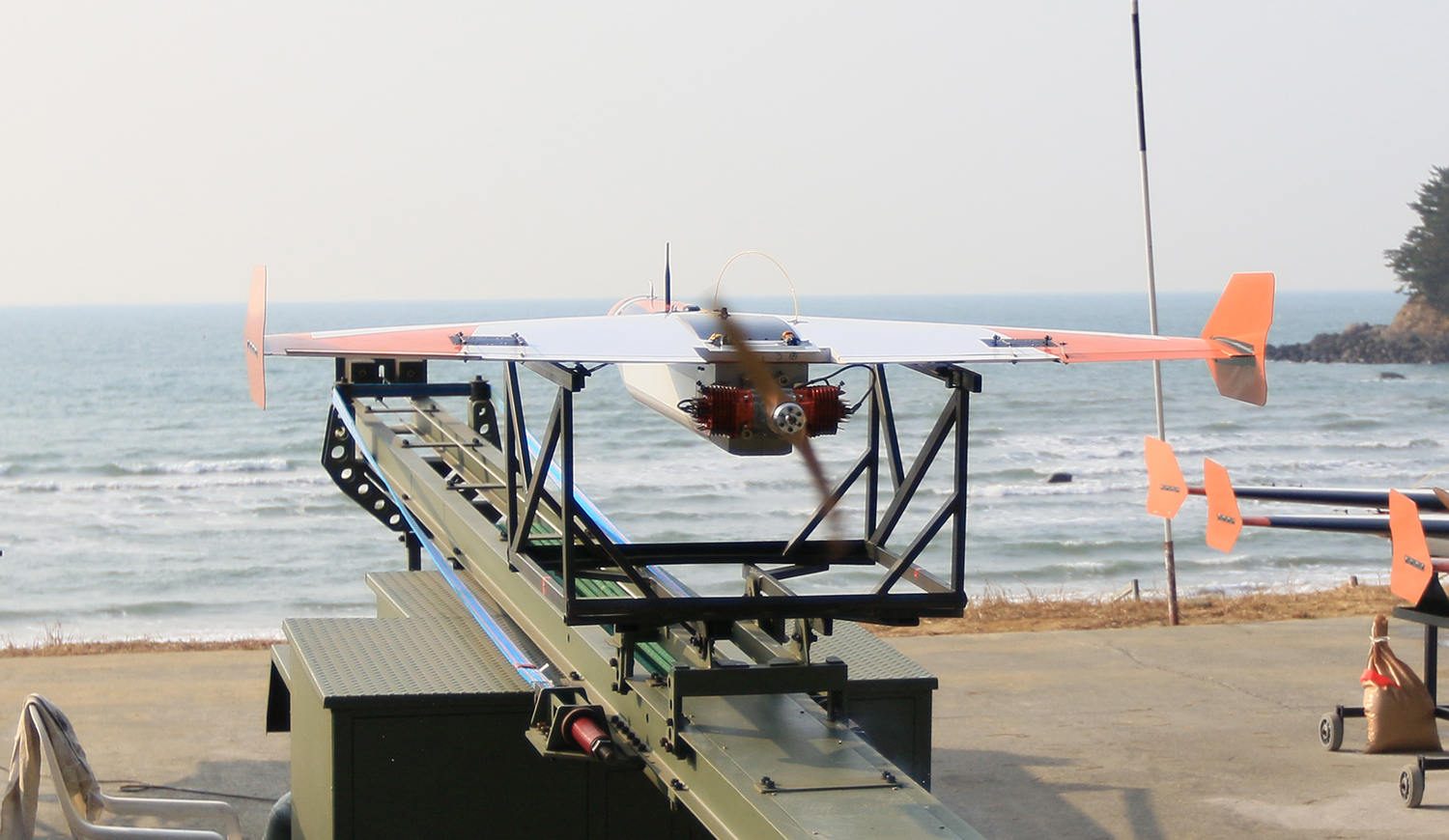

TD2000 High-Speed Target Drone




Wing Span

2.2 m

Length

2.0 m

Height

0.4 m

Empty Weight

30 kg

MTOW

60 kg*

Max Payload

10~20 kg*

Cruise Speed

150 km/h

Max Level Speed

300 km/h

Ceiling

7000 m

Endurance

> 50 min*

Fuel Tank Capacity

20 L

Engine

3W275

Max Power

21KW(28HP)

Reflected Load

Luneburg Ball

Infrared Load

Burn Sticks

Body Material

Composites

Take Off / Land Way

Catapult / Parachute

* Based on engine type and amount of fuel

Flight Video

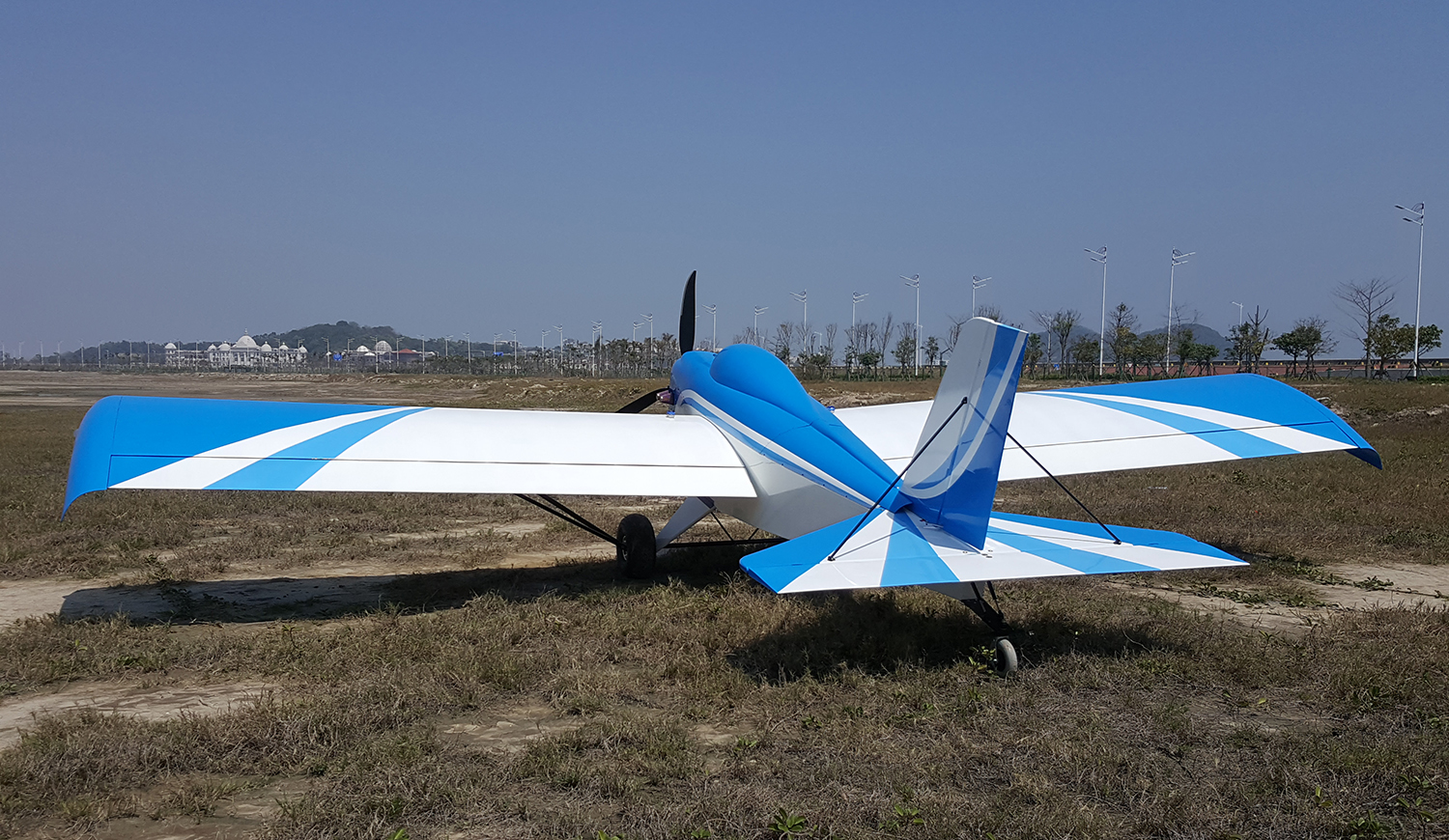

MF10 Cargo Drone




Wing Span

8.32 m

Length

5.12 m

Height

2.2 m

Empty Weight

180 kg

MTOW

330 kg*

Max Payload

150 kg*

Cruise Speed

60-120 km/h

Max Level Speed

180 km/h

Stall Speed

45 km/h

Ceiling

3650 m

Min Altitude

3~10 m

Endurance

> 6 Hour*

Fuel Tank Capacity

30~90 L

Engine

ROTAX 582

Max Power

48KW(65HP)

Body Material

Composites

Take Off / Land Way

Run

* Based on engine type and amount of fuel

Flight Video

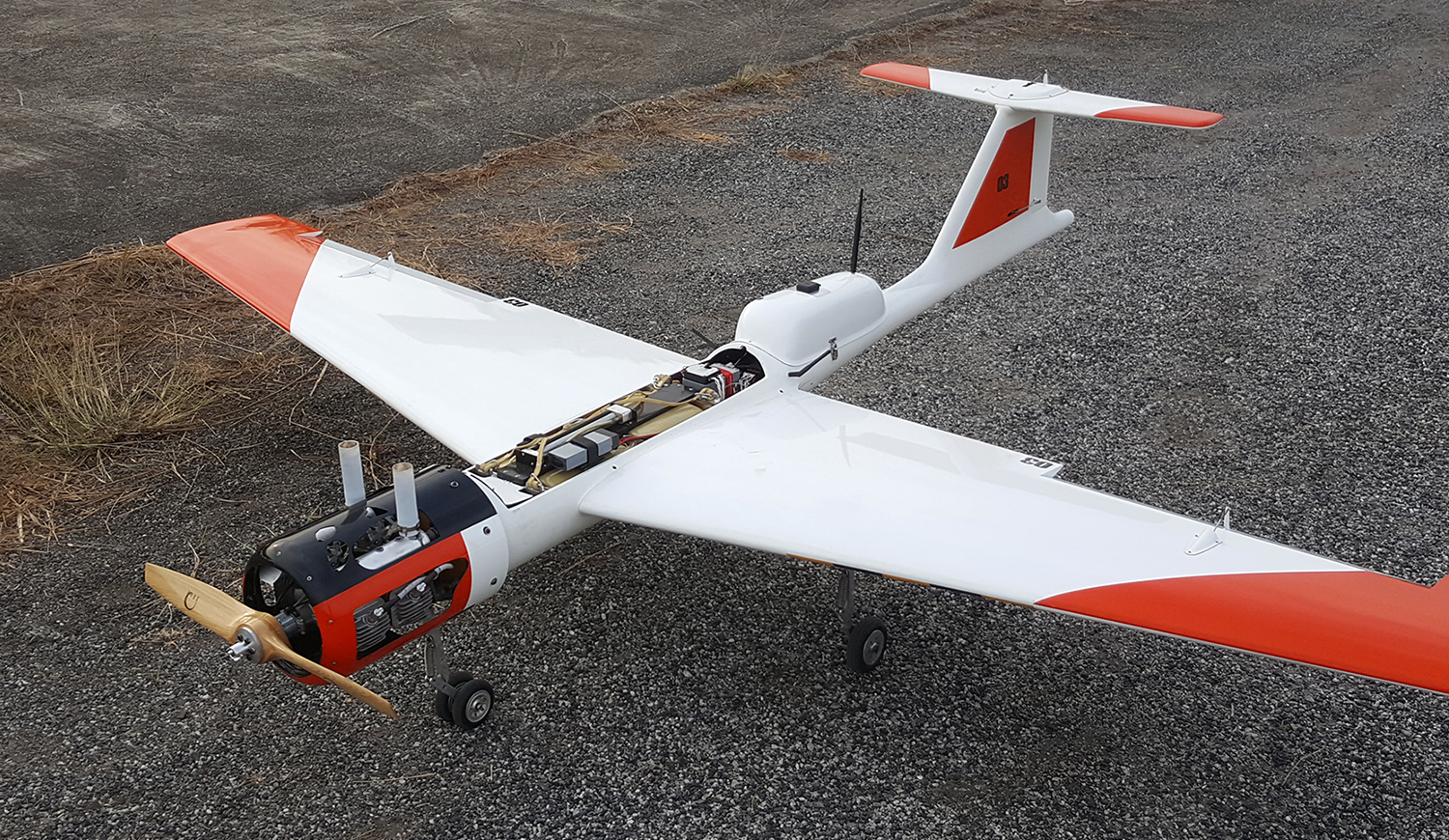

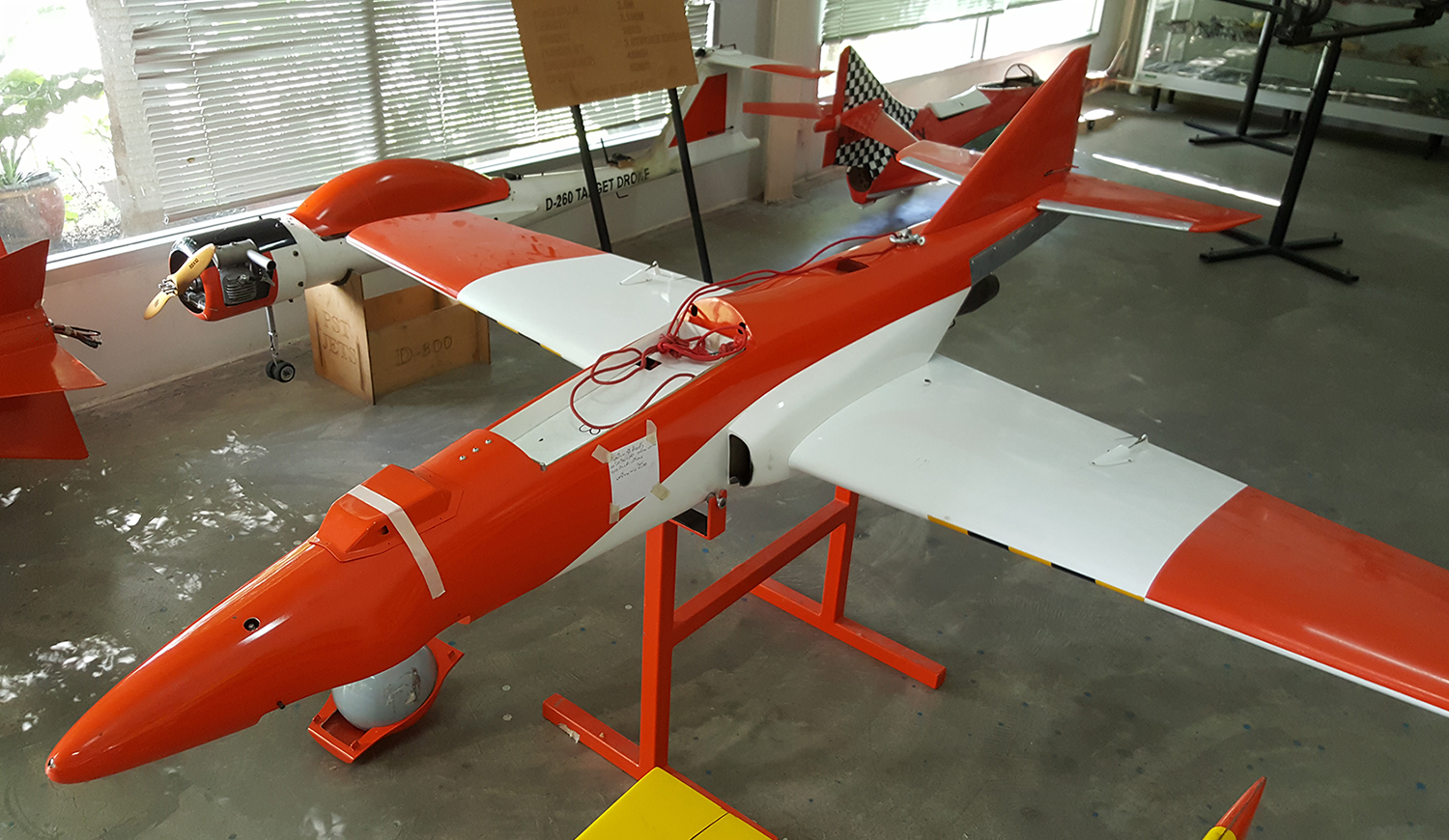

D320 High-Speed Target Drone




Wing Span

3.2 m

Length

2.76 m

Height

0.5 m

Empty Weight

36 kg

MTOW

45 kg*

Max Payload

10 kg*

Cruise Speed

160 km/h

Max Level Speed

250 km/h

Ceiling

3000 m

Endurance

> 60 min*

Fuel Tank Capacity

8.3 L

Engine

222cc

Max Power

21.5 HP

Reflected Load

Luneburg Ball

Infrared Load

Burn Sticks

Body Material

Composites

Take Off / Land Way

Run/Catapult/Parachute

* Based on engine type and amount of fuel

Flight Video

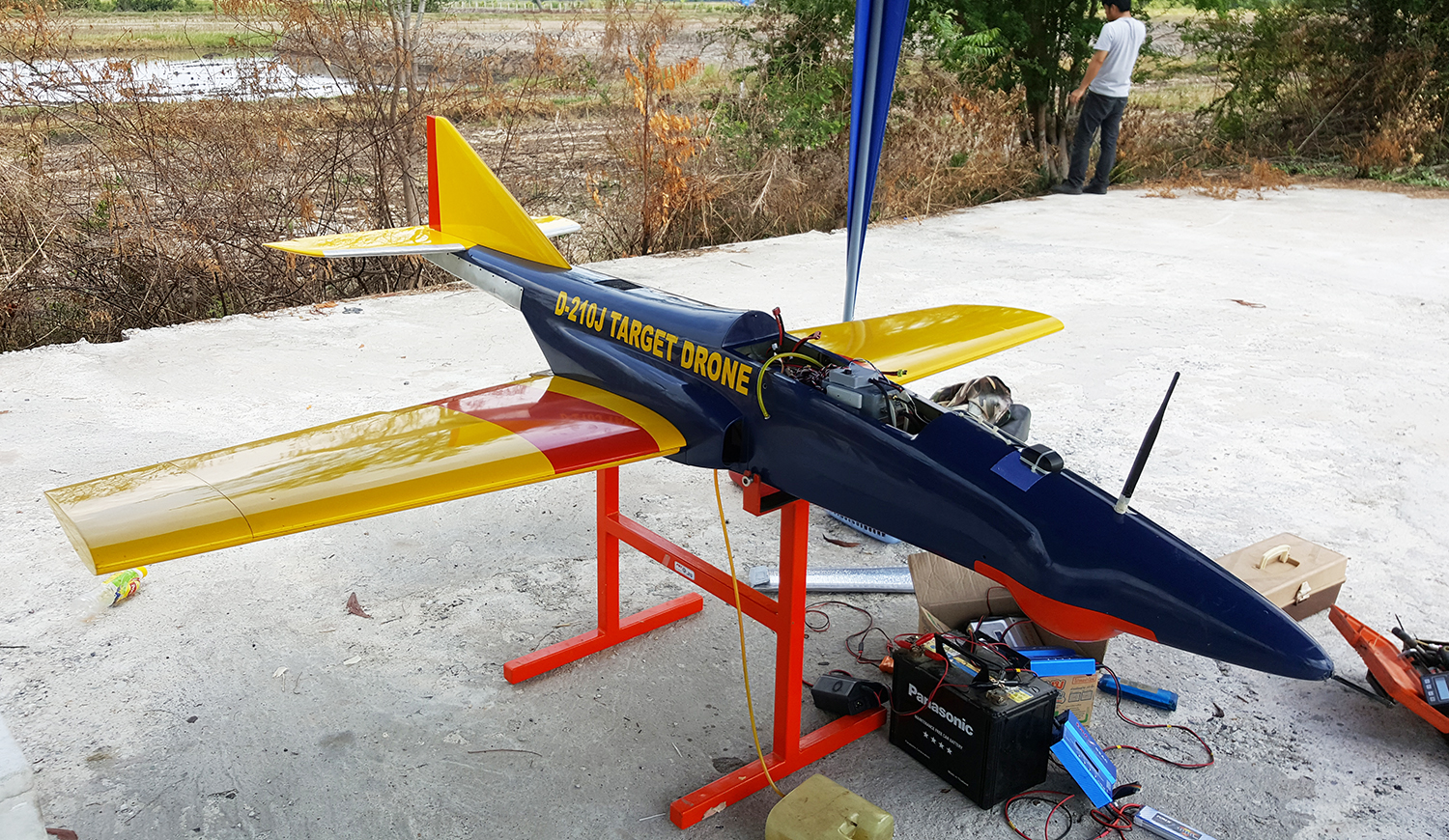

D210 High-Speed Jet Target Drone




Wing Span

2.12 m

Length

2.32 m

Height

0.54 m

Empty Weight

20 kg

MTOW

30 kg*

Max Payload

5 kg*

Cruise Speed

180 km/h

Max Level Speed

300 km/h

Ceiling

3000 m

Endurance

> 20 min*

Fuel Tank Capacity

8.5 L

Engine

Jet

Max Power

36 Ibs

Reflected Load

Luneburg Ball

Infrared Load

Burn Sticks

Body Material

Composites

Take Off / Land Way

Catapult / Parachute

* Based on engine type and amount of fuel

Flight Video

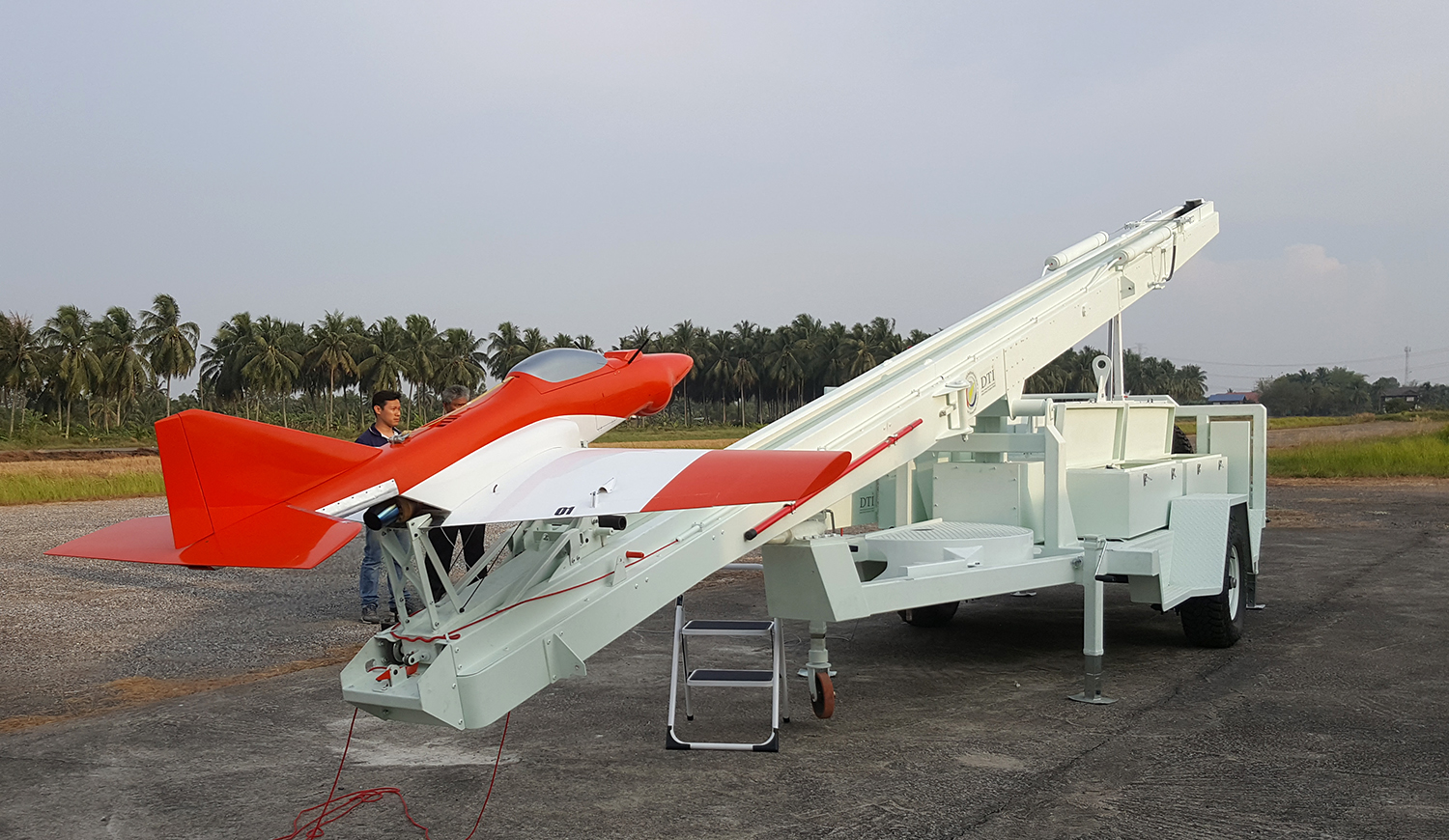

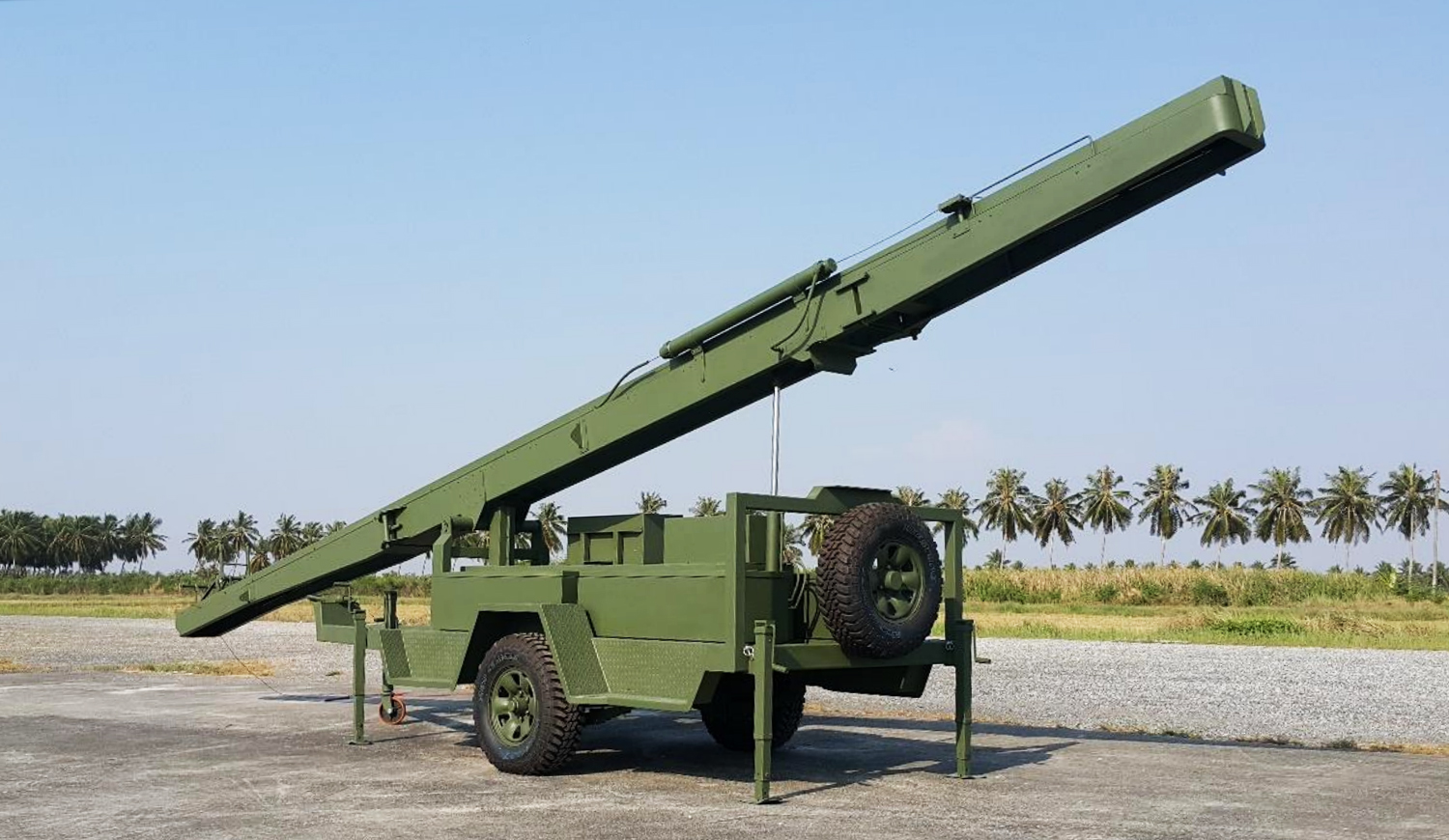

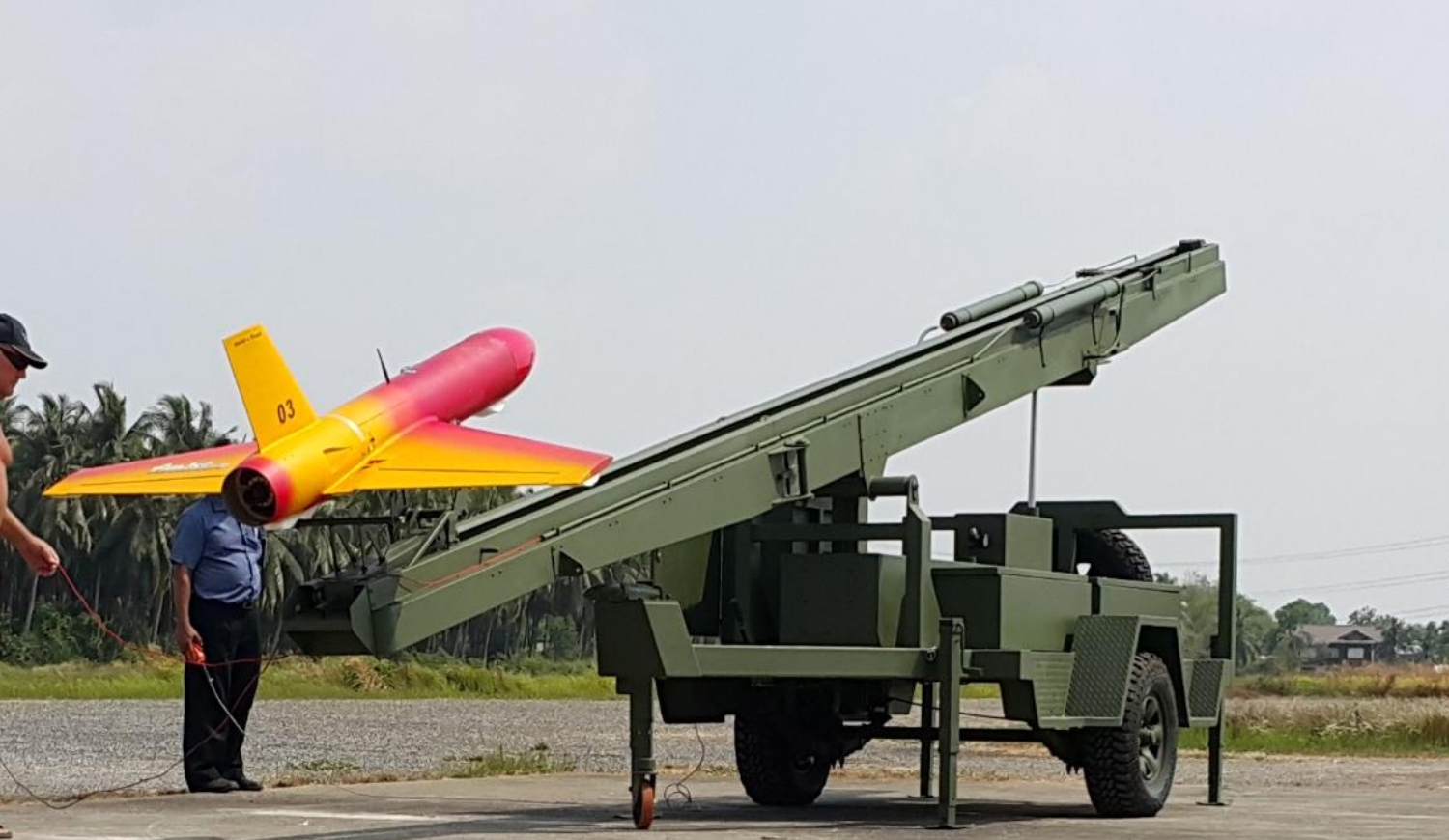

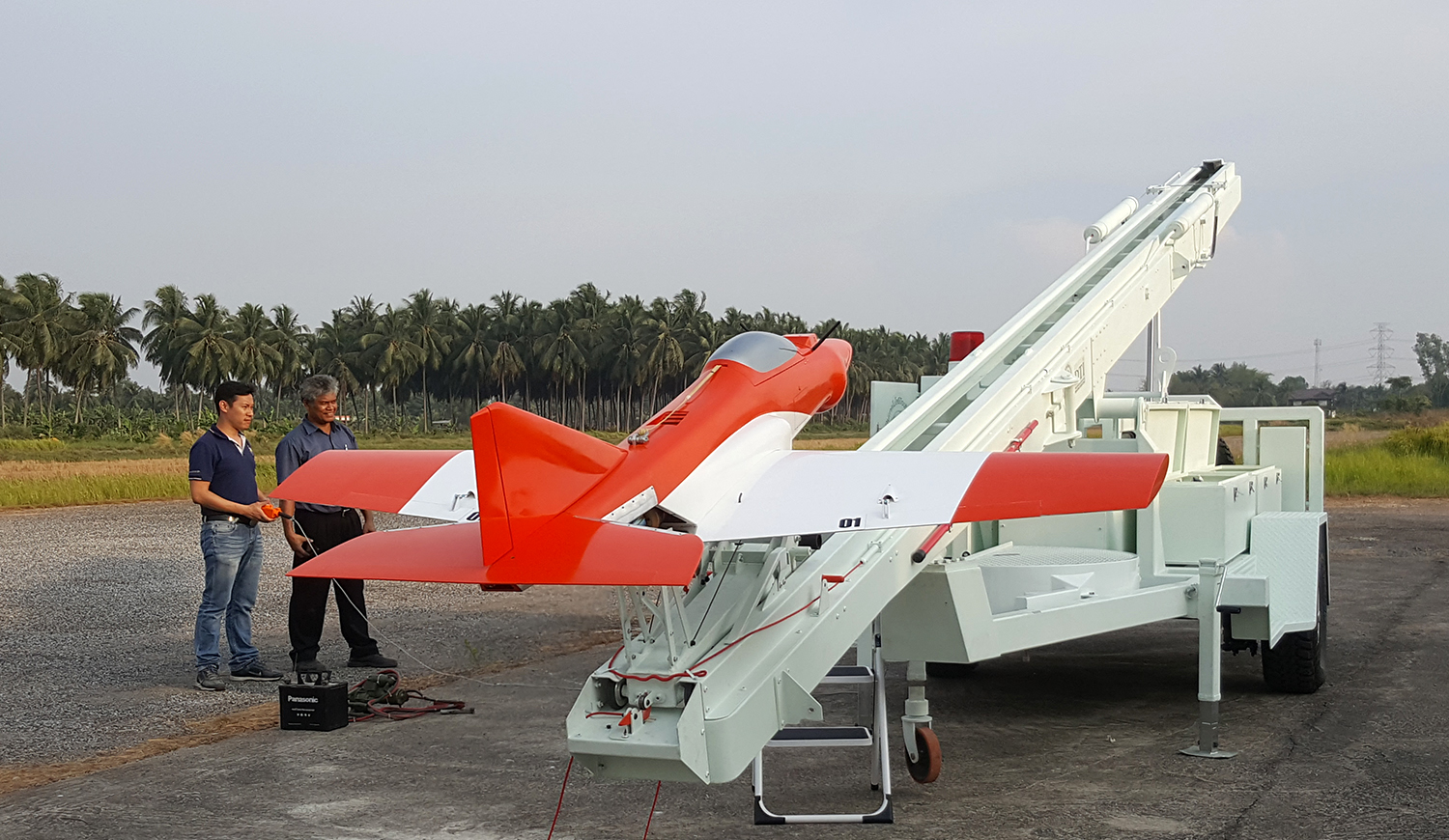

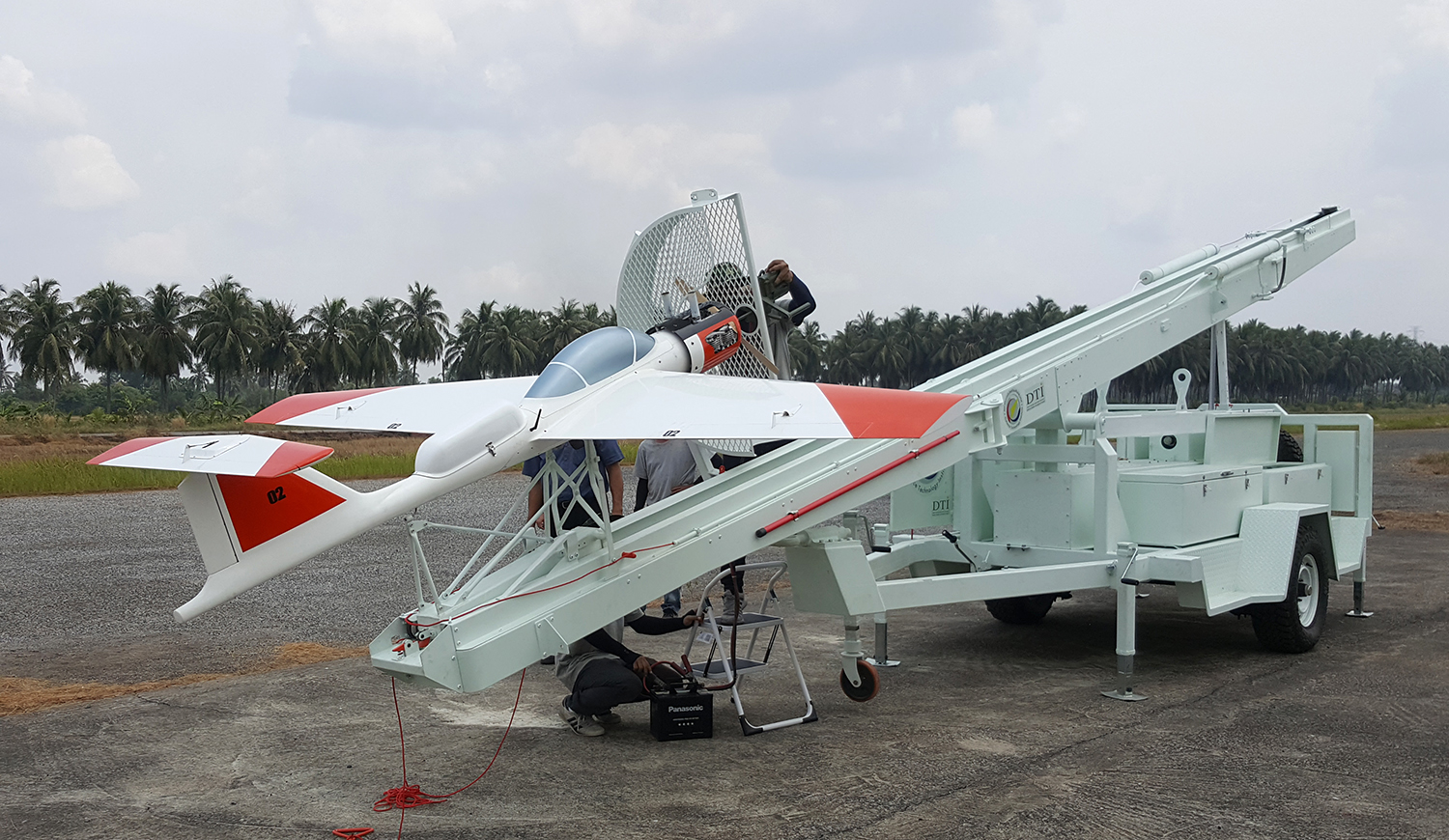

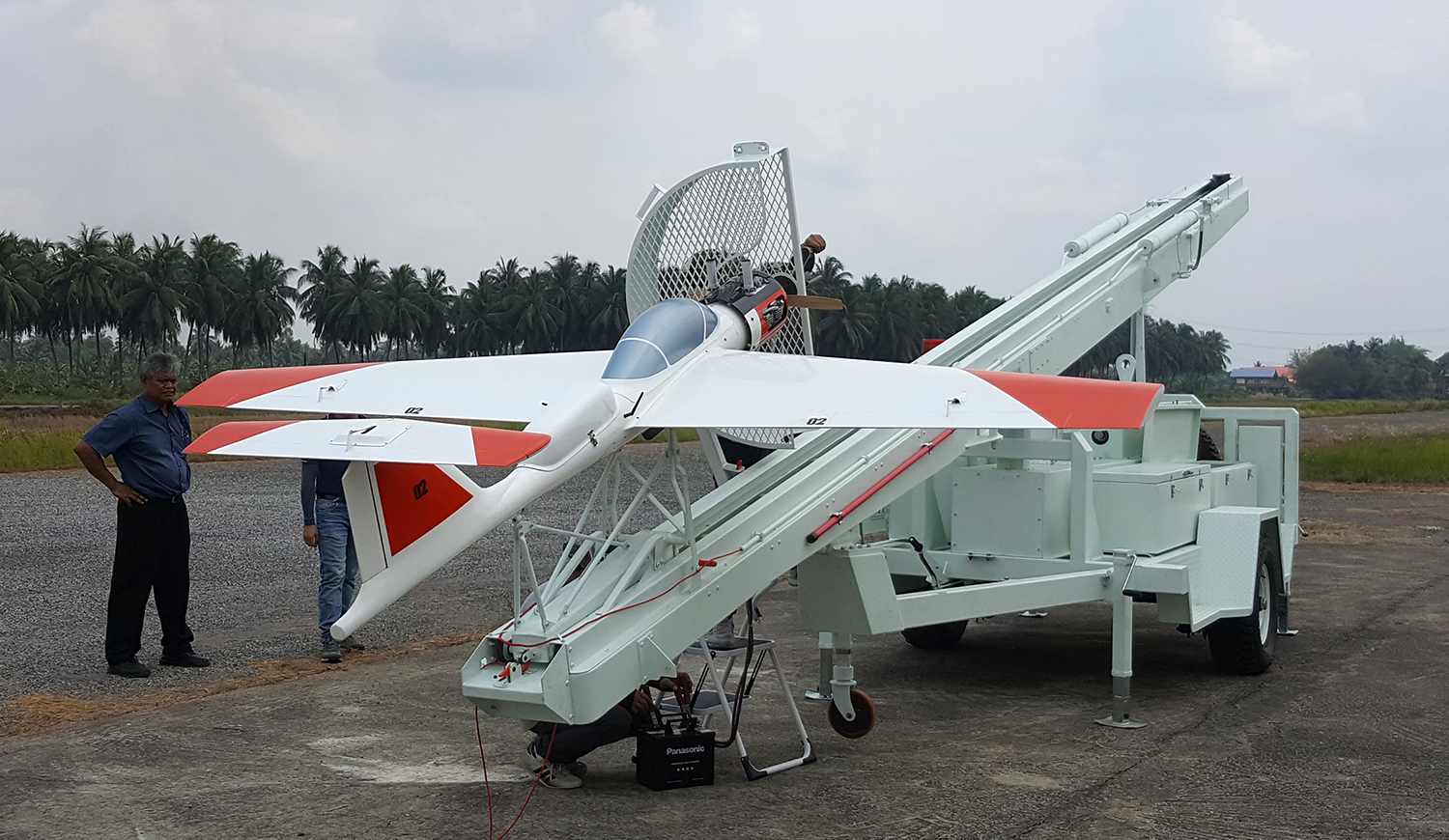

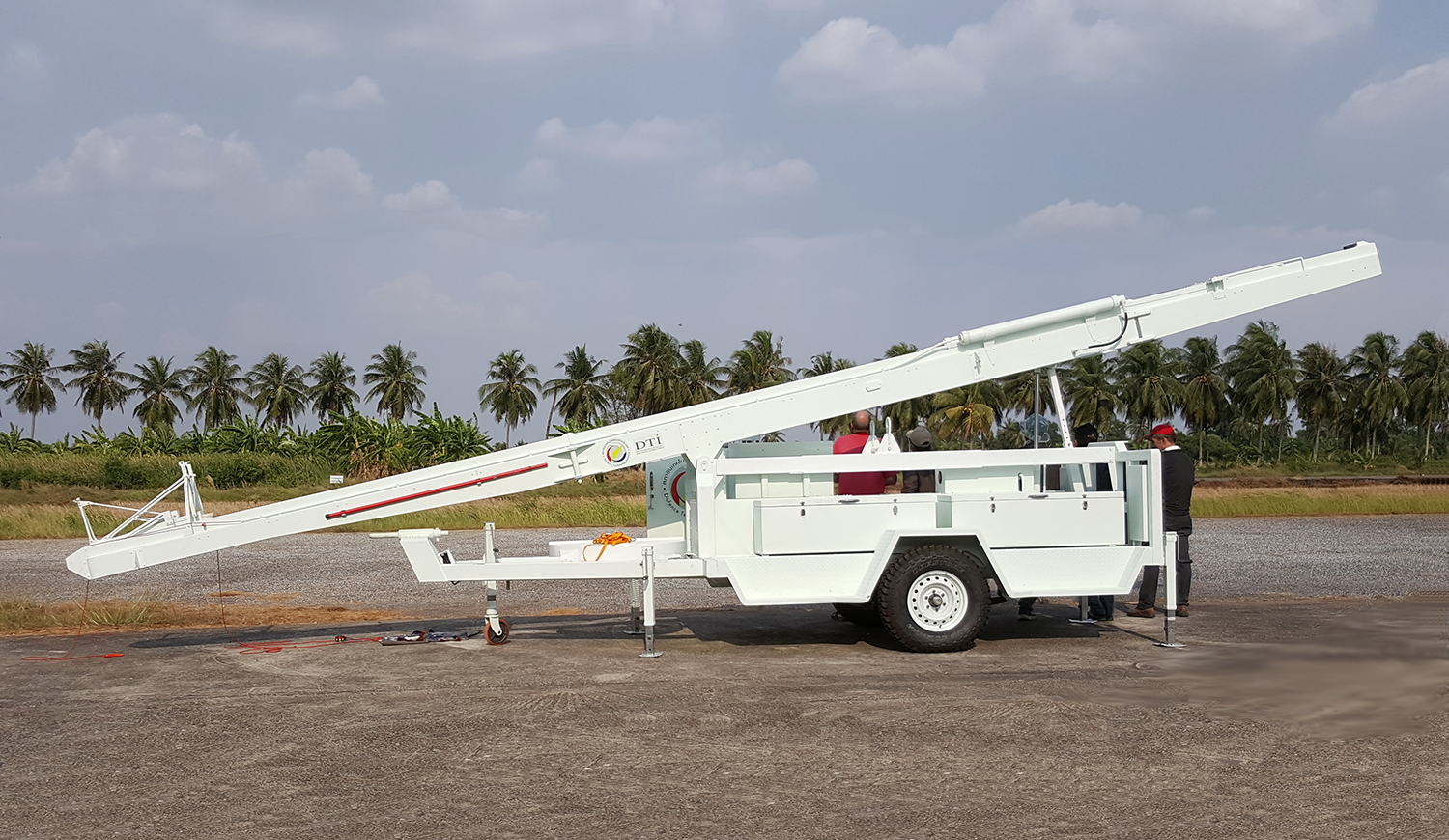

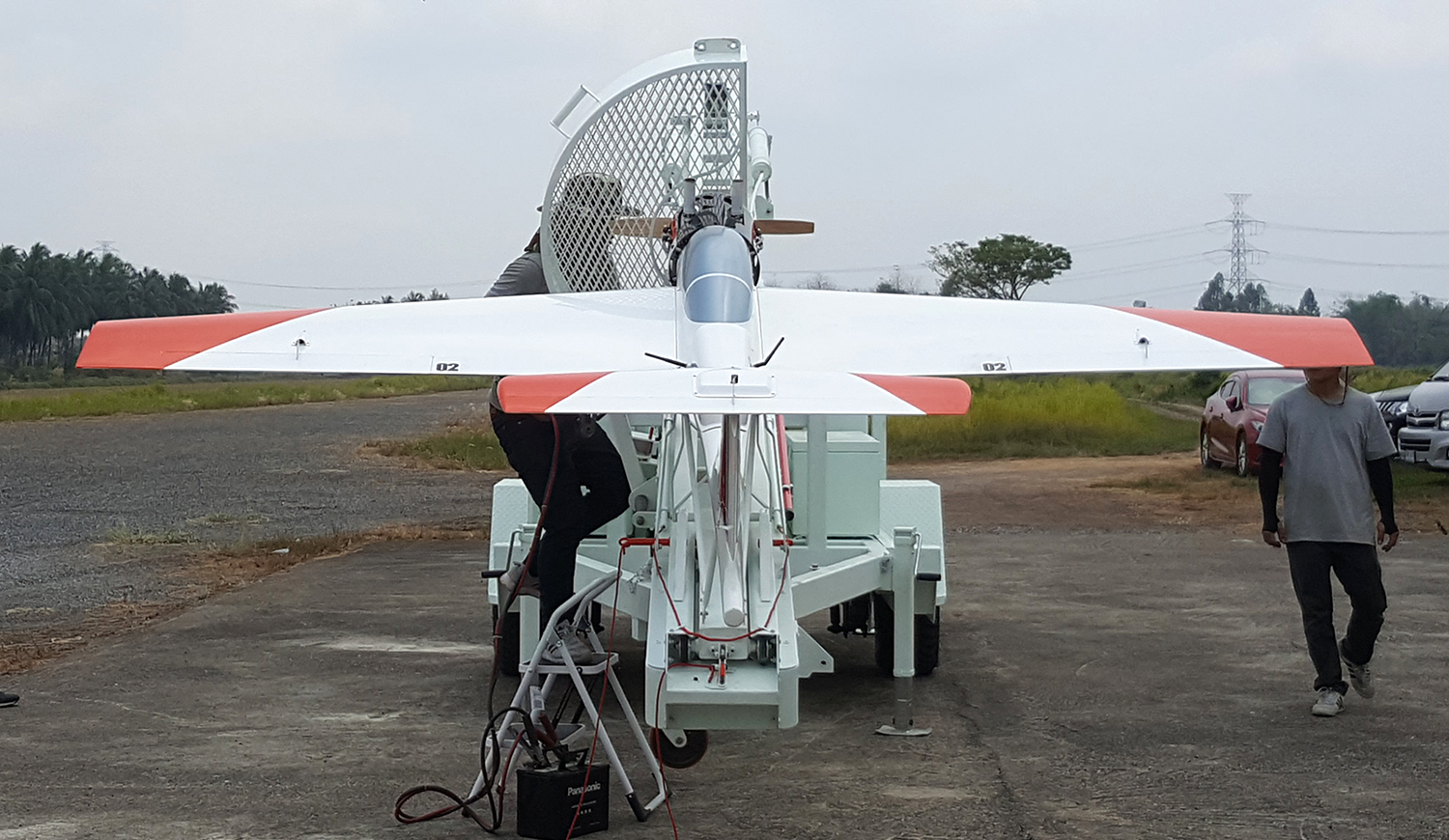

L-80 Catapult Launcher




Width

2.0 m

Rail Length

10 m

Height

1.9 m

Weight

1500 kg

Takeoff Weight

60 kg

Operating Pressure

100~120 bar

Takeoff Speed

23 m/s

Powered

24 V Battery

Launch Angle

0~25 deg

Max. Of Acceleration

< 10 g

Time ready for Launch

< 30 min

Recovery Time

< 10 min

Operation Temperature

-25 ~ +50

Flight Video
