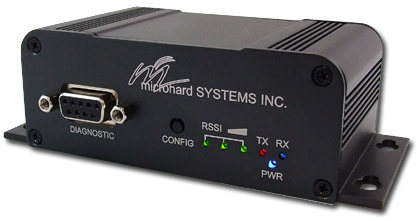

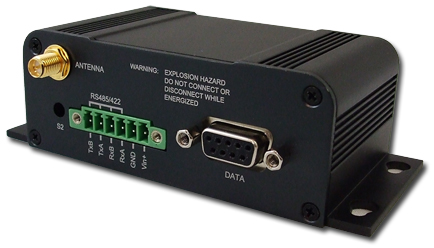

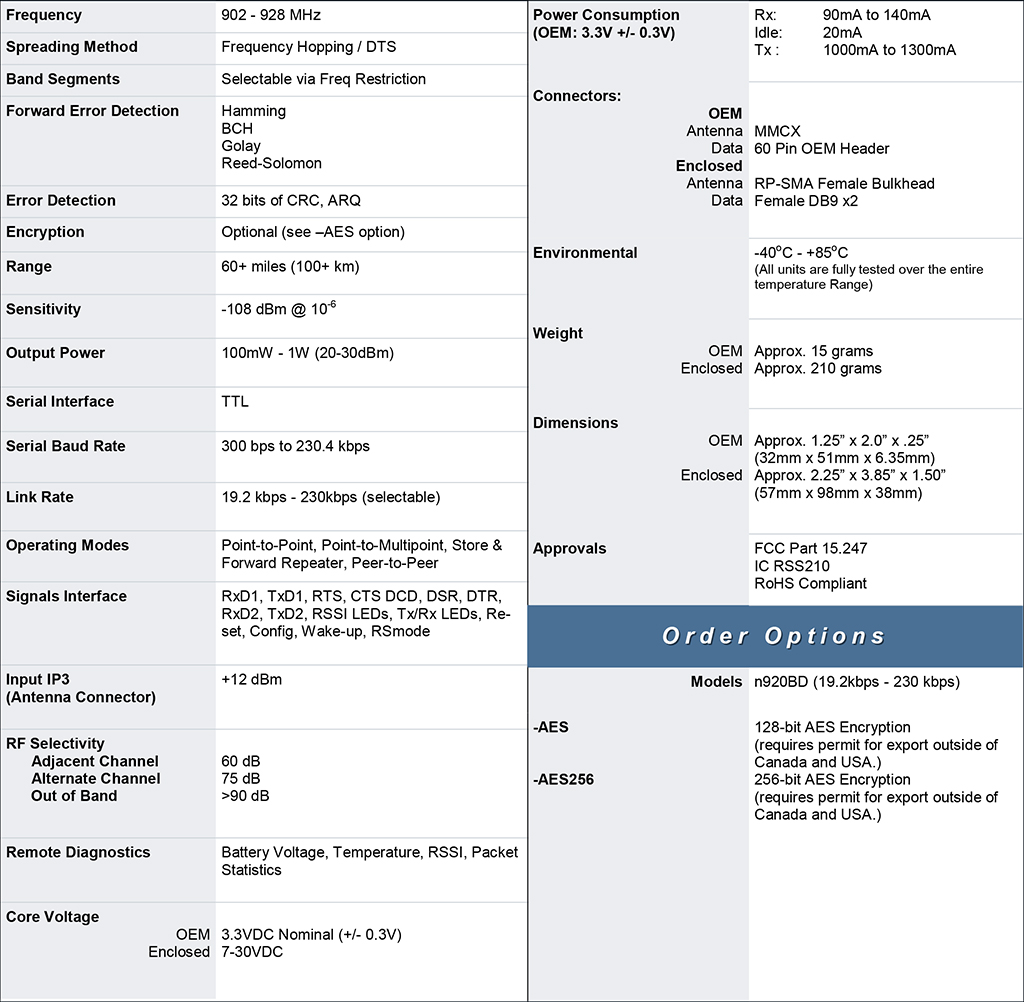

N920BD-ENC - 900 MHz Spread Spectrum Wireless Modem

The N920BD-ENC takes advantage of the small size of the N920BD OEM module to create an enclosed modem that is a fraction of the size of our existing Spectra Series Modems. Engineered into this tiny package is the reliability, features, and performance of our larger serial modems!

  • Supports 19.2kbps to 230.4kbps wireless link rates

  • Quad Filter Stages provides Extreme Noise and Interference Rejection

  • Master, Remote and Repeater Modes

  • Supports a variety of network topologies

  • RS232/485 Data Serial Port

  • RS232 Disgnostics Port

  • Adjustable Trasmit Power: 100mW to 1W

  • Wide Operating Temp (-40C to +85C)

  • Low power consumption in Sleep and Sniff modes

  • Forward Error Correction (FEC), 32 bits of CRC, and 128/256-bit AES (export permit may apply)

P900 Enclosed - Miniature Mesh 1W 900 MHz Wireless Modem

This enclosed version of the P900 provides standard connectors and status LED's for fast deployment. The enclosed version is ideal for base stations or performance testing of the P900 platform. The P900 features a small footprint for tight integration and design flexibility. The P900 offers a robust, low cost solution with advanced features such as Self Healing Mesh and PMP modes with auto-routing capabilities!

  • Supports up to 276kbps

  • Very Low Cost

  • Point to Point, Point to Multipoint, Mesh

  • True Self Healing Mesh, Auto Routing, Store & Forward

  • Master, Remote, Repeater, Mesh

  • Industrial Temperature (-55C to +85C)

  • Adjustable Transmit Power 100mW-1W

  • Small Size

  • Low power consumption in Sleep and Sniff modes

  • Quad Filter Stages provides Extreme Noise and Interference Rejection

  • Selectable Forward Error Correction (FEC), 32 bits of CRC, and 128-bit AES (Export Permit required outside Canada & USA)

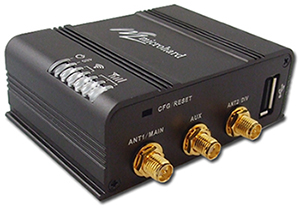

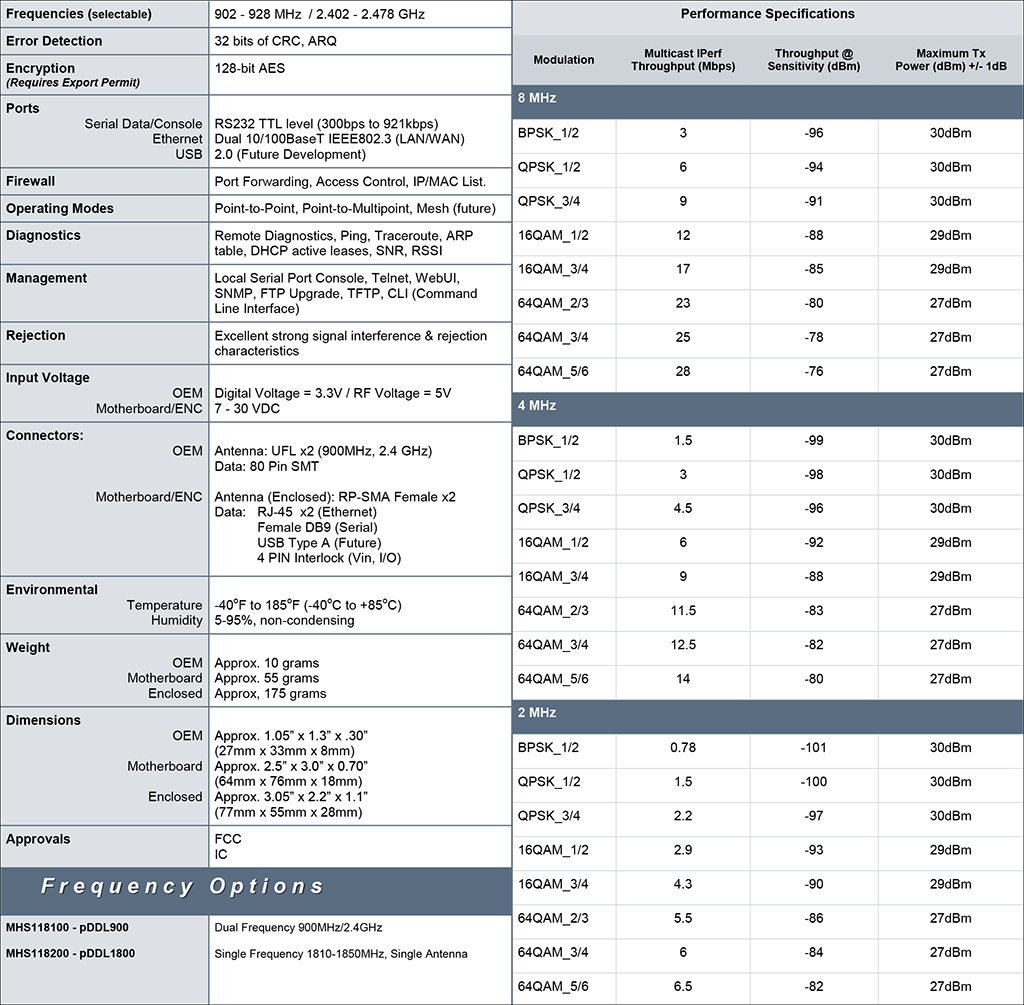

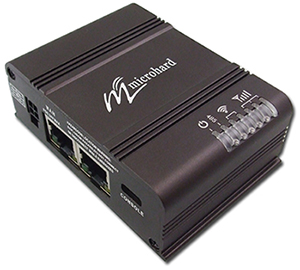

PDDL-ENC - Wireless Ethernet & Serial Digital Data Link

The Pico Digital Data Link (PDDL) provides the bandwidth and range needed for complex data applications. The PDDL provides fast and secure, simultaneous Ethernet and Serial based data communication. Robust digital modulation technology provides for an innovative solution for secure data transfer and extended range requirements.

The enclosed option for the PDDL provides a compact & robust enclosure with standard interfaces for Ethernet, Serial, Power and Antennas. LED indicators provide visual feedback for system health and operation.

  • Data Rates > 20 Mbps!

  • Diversity Antenna

  • Adjustable Output Power (up to 1W)

  • LED Indicators

  • Long Range

  • Point-to-Point, Point-to-Multipoint, Mesh

  • Master, Remote, Repeater, Mesh Modes

  • Low Power Consumption

  • Simultaneous IP & Serial Data

  • Dual Serial Ports

  • Dual Ethernet Ports (LAN/WAN)

  • Port Forwarding, ACL, Firewall

  • Extended Temp (-40C to +85C)

  • 128-bit AES Encryption

  • Network Management with SNMP

  • Configurable via local console, telnet, web browser

  • Local/Remote firmware upgrades

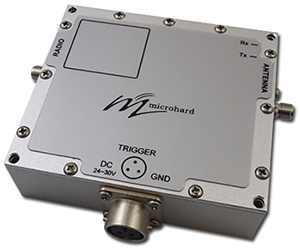

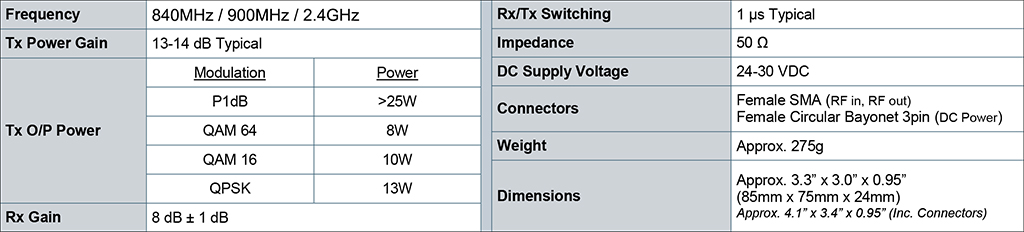

Digital Data Link 10W Linear COTS Amplifier

The DDL Amplifier is a 10W linear amplifier, designed for Digital Data Link applications. The DDL Amplifier offers a compact, rugged design, featuring high speed automatic Tx/Rx switching.

  • Rx Band-Pass Filtering

  • Automatic Tx/Rx Switching

  • 1us Switching

  • External Tx-Rx Triggering (optional)

  • Low Noise Figure

  • Overvoltage protection on all ports

  • Tx/Rx LEDs

  • Light weight

  • Compact & Rugged Design
